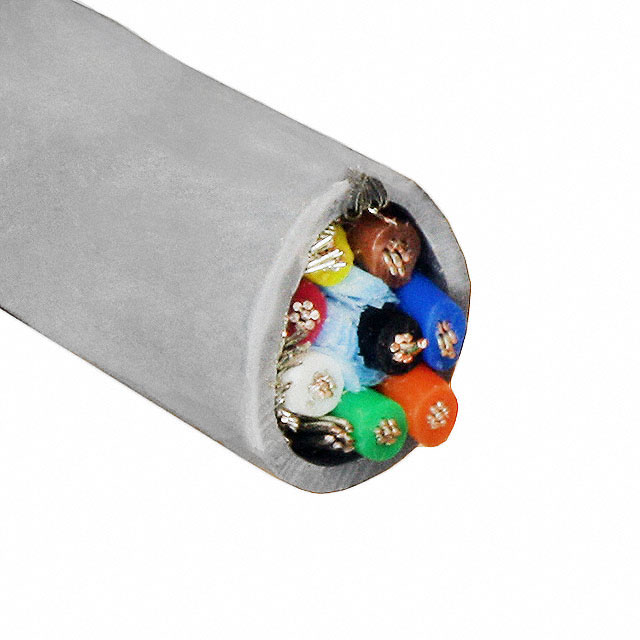

M2408 SL199

Active

ALPHA WIRE

CABLE 8COND 28AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 28AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M2408 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.206 "
Jacket (Insulation) Diameter [diameter]	5.23 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	28 AWG

Part	Features	Conductor Material	Conductor Insulation	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Shield Type	Shield Material	Number of Conductors	Jacket (Insulation) Material	Cable Type	Shield Coverage	Ratings	Wire Gauge	Jacket Color	Length [x]	Length [x]
ALPHA WIRE M2408 SL199	Drain Wire Rip Cord	Copper Tinned	Poly-Vinyl Chloride (PVC)	914.4 m	3000 ft	-20 C	80 C	36 AWG	7	0.206 "	5.23 mm	300 V	Braid Foil	Aluminum Copper Tinned	8	Poly-Vinyl Chloride (PVC)	Multi-Conductor	65 % 100 %	UL Style 2464	28 AWG	Slate
ALPHA WIRE M2408 SL005	Drain Wire Rip Cord	Copper Tinned	Poly-Vinyl Chloride (PVC)			-20 C	80 C	36 AWG	7	0.206 "	5.23 mm	300 V	Braid Foil	Aluminum Copper Tinned	8	Poly-Vinyl Chloride (PVC)	Multi-Conductor	65 % 100 %	UL Style 2464	28 AWG	Slate	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.98

General part information

8 Conductor Multi-Conductor Cable Slate 28 AWG Foil, Braid 3000' (914.4m)
