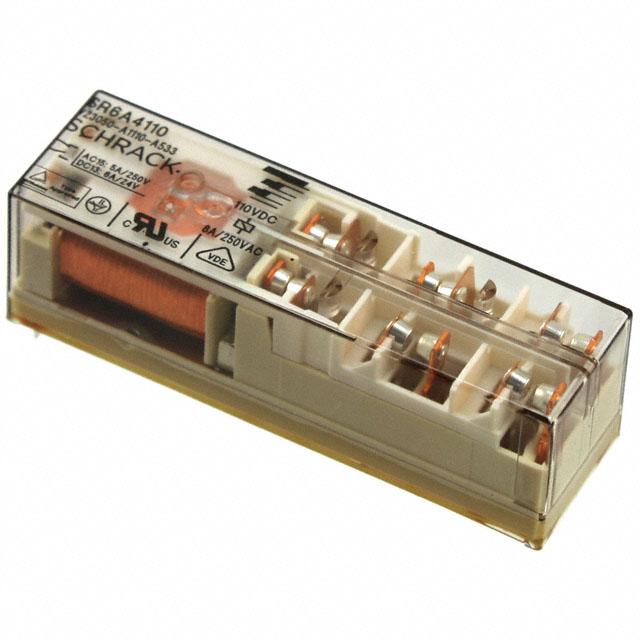

V23050A1085A542

Active

TE Connectivity Potter & Brumfield Relays

RELAY SAFETY 6PST 8A 85V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V23050A1085A542

Active

TE Connectivity Potter & Brumfield Relays

RELAY SAFETY 6PST 8A 85V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23050A1085A542

Coil Current	14.1 mA
Coil Power	1.2 W
Coil Resistance	6.02 kOhms
Coil Voltage	85 VDC
Contact Form	6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Mounting Type	Through Hole
Must Operate Voltage	64 VDC
Must Release Voltage	8.5 VDC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23050 Series

Part	Mounting Type	Contact Material	Coil Power	Contact Rating (Current)	Coil Voltage	Termination Style	Must Operate Voltage	Must Release Voltage	Coil Resistance	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Switching Voltage [Max]	Load - Max Switching	Relay Type	Approval Agency	Coil Type
TE Connectivity Potter & Brumfield Relays V23050-A1024-A551	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	24 VDC	PC Pin	18 VDC	2.4 VDC	480 Ohms	6PST-5NO/1NC (5 Form A 1 Form B)	70 °C	-25 °C	50 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050-A1024-A533	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	24 VDC	PC Pin	18 VDC	2.4 VDC	480 Ohms		70 °C	-25 °C	50 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1012A551	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	12 VDC	PC Pin	9 VDC	1.2 VDC	120 Ohms	6PST-5NO/1NC (5 Form A 1 Form B)	70 °C	-25 °C	100 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1085A542	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	85 VDC	PC Pin	64 VDC	8.5 VDC	6.02 kOhms	6PST-4NO/2NC (4 Form A 2 Form B)	70 °C	-25 °C	14.1 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1060A533	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	60 VDC	PC Pin	45 VDC	6 VDC	3 kOhms		70 °C	-25 °C	20 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1009A533	Through Hole	Silver Tin Oxide (AgSnO)		8 A	9 VDC	PC Pin	6.8 VDC	0.9 VDC	68 Ohms		70 °C	-25 °C	132.4 mA	400 VAC	3200 VA	General Purpose	CCC cURus TUV VDE	Non Latching
TE Connectivity Potter & Brumfield Relays V23050A1012A533	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	12 VDC	PC Pin	9 VDC	1.2 VDC	120 Ohms		70 °C	-25 °C	100 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1048A542	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	48 VDC	PC Pin	36 VDC	4.8 VDC	1.92 kOhms	6PST-4NO/2NC (4 Form A 2 Form B)	70 °C	-25 °C		400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1060A551	Through Hole	Silver Tin Oxide (AgSnO)	1.2 W	8 A	60 VDC	PC Pin	45 VDC	6 VDC	3 kOhms	6PST-5NO/1NC (5 Form A 1 Form B)	70 °C	-25 °C	20 mA	400 VAC
TE Connectivity Potter & Brumfield Relays V23050A1005A551	Through Hole	Silver Tin Oxide (AgSnO)		8 A	5 VDC	PC Pin	3.8 VDC	0.5 VDC	21 Ohms	6PST-5NO/1NC (5 Form A 1 Form B)	70 °C	-25 °C	238.1 mA	400 VAC	3200 VA	General Purpose	CCC cURus TUV VDE	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	250	$ 22.23

Description

General part information

V23050 Series

RELAY SAFETY 6PST 8A 85V
