Technical Specifications
Parameters and characteristics for this part
| Specification | TIW 24-124 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CB, CE, cCSAus |
| Current - Output 1 | 1 A |
| Efficiency | 85 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 24 W |
| Size / Dimension [x] | 55 mm |
| Size / Dimension [x] | 2.17 " |
| Size / Dimension [y] | 0.93 " |
| Size / Dimension [y] | 23.6 mm |
| Size / Dimension [z] | 1.89 " |
| Size / Dimension [z] | 48 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 132 VAC |
| Voltage - Input [Min] | 187 VAC, 93 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 62.04 | |
| 10 | $ 57.02 | |||
| 25 | $ 55.14 | |||
| 50 | $ 53.76 | |||
| 100 | $ 52.41 | |||
| 250 | $ 46.05 | |||
Description
General part information

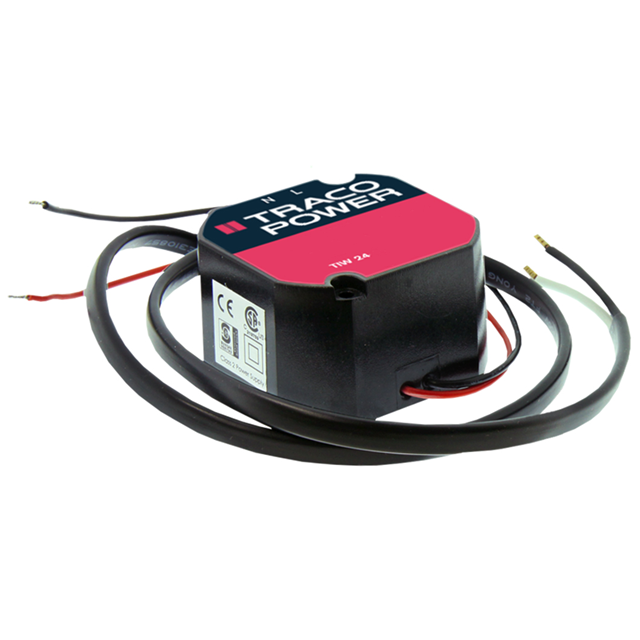

TIW 24 Series
Enclosed AC DC Converters 1 Output 24V 93 ~ 132 VAC, 187 ~ 264 VAC Input
