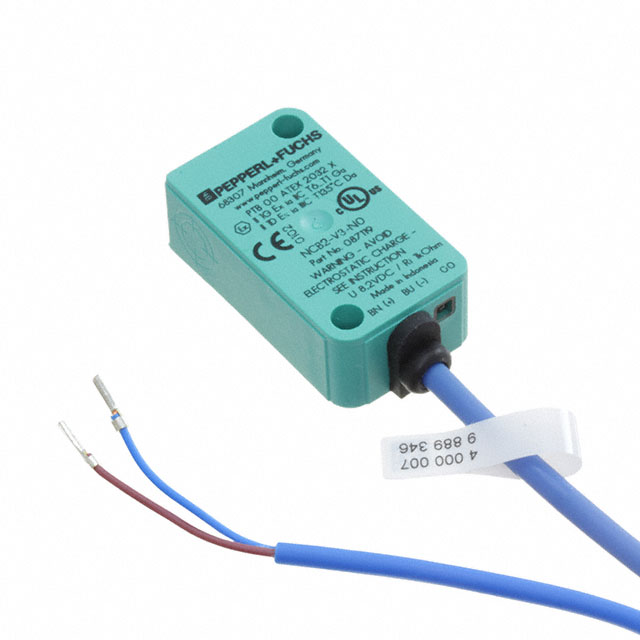

NCB2-V3-N0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NCB2-V3-N0

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Module
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply	8.2 V

Part	Output Type	Package / Case	Operating Temperature [custom]	Sensing Distance	Sensing Distance	Indicator [custom]	Material - Body	Shielding	Ingress Protection	Sensor Type	Termination Style	Voltage - Supply
PEPPERL+FUCHS NCB2-V3-N0	SCR-NC 2-Wire	Module	-25 °C 100 °C	0.079 in	2 mm	LED	Polybutylene Terephthalate (PBT)	Unshielded	IP67	Inductive	Cable	8.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 2MM NAMUR

Technical documentation and resources
