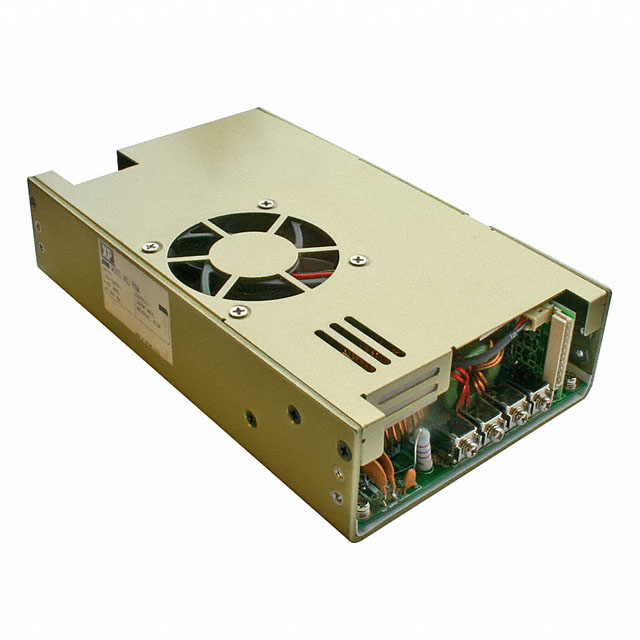

PBM200PS15-C

Active

XP POWER

PSU,200W,SINGLE / BOX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

XP POWER

PSU,200W,SINGLE / BOX ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PBM200PS15-C

Applications	Medical
Current - Output 1	13.4 A
Efficiency	80 %
Features	Remote On/Off, Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	200 W
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38.1 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Applications	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Output 1	Type	Operating Temperature [Max]	Mounting Type	Voltage - Isolation	Current - Output 2	Voltage - Output 2	Voltage - Output 3	Current - Output 3
XP POWER PBM200PS15-C	Medical	1	80 %	7 "	4 "	1.5 "	177.8 mm	38.1 mm	101.6 mm	200 W	13.4 A	90 VAC	264 VAC	Remote On/Off Standby Output Universal Input	15 V	Enclosed	70 °C	Chassis Mount	4000 V
XP POWER PBM200PS05-C	Medical	1	80 %	7 "	4 "	1.5 "	177.8 mm	38.1 mm	101.6 mm	200 W	35 A	90 VAC	264 VAC	Remote On/Off Standby Output Universal Input	5.1 V	Enclosed	70 °C	Chassis Mount	4000 V
XP POWER PBM200PS12-C	Medical	1	80 %	7 "	4 "	1.5 "	177.8 mm	38.1 mm	101.6 mm	200 W	16.7 A	90 VAC	264 VAC	Remote On/Off Standby Output Universal Input	12 V	Enclosed	70 °C	Chassis Mount	4000 V
XP POWER PBM200PQ02-C	Medical	3	80 %	7 "	4 "	1.5 "	177.8 mm	38.1 mm	101.6 mm	200 W	30 A	90 VAC	264 VAC	Remote On/Off Standby Output Universal Input	5.1 V	Enclosed	70 °C	Chassis Mount	4000 V	8 A	12 V	-12 V	4 A
