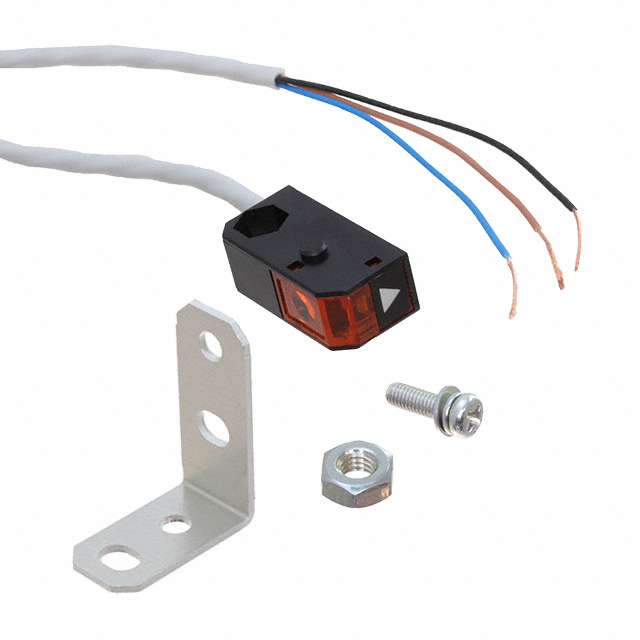

MV3/59/115/148
ObsoletePEPPERL+FUCHS
PHOTOELECTRIC (AUTOMATION)
Deep-Dive with AI
Search across all available documentation for this part.
MV3/59/115/148
ObsoletePEPPERL+FUCHS
PHOTOELECTRIC (AUTOMATION)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MV3/59/115/148 |
|---|---|
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable with Connector |
| Ingress Protection | IP40 |
| Light Source | Infrared |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Dark-On, NPN/PNP |
| Response Time | 1 ms |
| Sensing Distance | 4.9 ft |
| Sensing Distance | 1.5 m |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 26.4 V |
| Voltage - Supply [Min] | 10.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 286.68 | |
| 5 | $ 244.48 | |||
| 10 | $ 234.55 | |||
| 25 | $ 223.38 | |||
| 50 | $ 204.77 | |||
| 100 | $ 176.23 | |||
Description
General part information
MV3/59 Series
Through-Beam Optical Sensor 4.9' (1.50m) NPN/PNP - Dark-ON
Documents
Technical documentation and resources
No documents available
