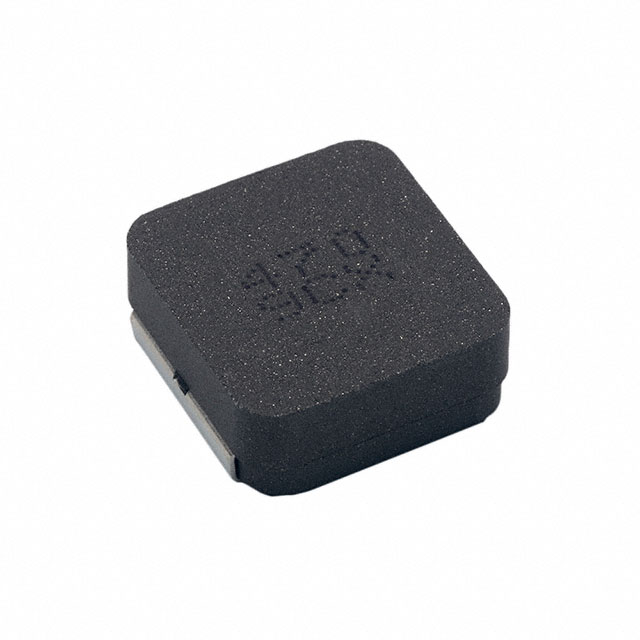

MPXV1D1054L470 - MPXV1D1770

MPXV1D1054L470

Active
KEMET

POWER INDUCTOR (SMD), AEC-Q200, 47 ΜH, 3.7 A, SHIELDED, 4.6 A, MPXV SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue ENApplication Note EN+4
MPXV1D1054L470 - MPXV1D1770

MPXV1D1054L470

Active
KEMET

POWER INDUCTOR (SMD), AEC-Q200, 47 ΜH, 3.7 A, SHIELDED, 4.6 A, MPXV SERIES

Deep-Dive with AI

DocumentsManufacturer Catalogue ENApplication Note EN+4

Technical Specifications

Parameters and characteristics for this part

SpecificationMPXV1D1054L470
Current - Saturation (Isat)4.6 A
Current Rating (Amps)3.7 A
DC Resistance (DCR) [Max]128.8 mOhm
Frequency - Self Resonant4 MHz
Height - Seated (Max) [Max] [z]5.4 mm
Height - Seated (Max) [Max] [z]0.213 in
Inductance47 µH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]10.8 mm
Size / Dimension [x]0.425 in
Size / Dimension [y]10 mm
Size / Dimension [y]0.394 in
Tolerance20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.32
10$ 1.09
25$ 1.00
50$ 0.95
100$ 0.89
250$ 0.83
Digi-Reel® 1$ 1.57
10$ 1.22
25$ 1.10
50$ 1.02
100$ 0.95
250$ 0.85
Tape & Reel (TR) 500$ 0.78
1000$ 0.73
1500$ 0.71
2500$ 0.68
3500$ 0.66
5000$ 0.64
12500$ 0.64
NewarkEach (Supplied on Full Reel) 1000$ 0.83
2000$ 0.78
4000$ 0.71
6000$ 0.68
10000$ 0.65

Description

General part information

MPXV1D1054 Series

47 µH Shielded Inductor 3.7 A 128.8mOhm Max Nonstandard
