CCLB-1-3057-9933-I

Active

Visual Communications Company - VCC

SEALED LED INDICATOR BLUE

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

SEALED LED INDICATOR BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Lens Style	Termination Style	Type	Lens Color	Panel Cutout Shape	Millicandela Rating	Wavelength - Peak	Viewing Angle	Lamp Color	Voltage	Ratings
Visual Communications Company - VCC CCLB-1-3057-9913-I	IP67	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	LED	Blue	Round	640 mcd	468 nm	20 °	Blue	3.3 V
Visual Communications Company - VCC CCLB-1-3057-9909-I	IP67	Round with Domed Top		LED		Round	640 mcd	468 nm	20 °	Blue	12 V	DC
Visual Communications Company - VCC CCLB-1-3057-9922-I	IP67	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	LED	Blue	Round	640 mcd	468 nm	20 °	Blue	3.3 V
Visual Communications Company - VCC CCLB-1-3057-9933-I	IP67	Round with Domed Top		LED		Round	640 mcd	468 nm	20 °	Blue	28 V	DC
Visual Communications Company - VCC CCLB-1-3057-0000-I	IP67	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	LED	Blue	Round	640 mcd	468 nm	20 °	Blue	3.3 V
Visual Communications Company - VCC CCLB-1-3057-9911-I	IP67	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	LED	Blue	Round	640 mcd	468 nm	20 °	Blue	3.3 V
Visual Communications Company - VCC CCLB-1-3057-9923-I	IP67	Round with Domed Top	Wire Leads - 6.000" (152.40mm)	LED	Blue	Round	640 mcd	468 nm	20 °	Blue	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

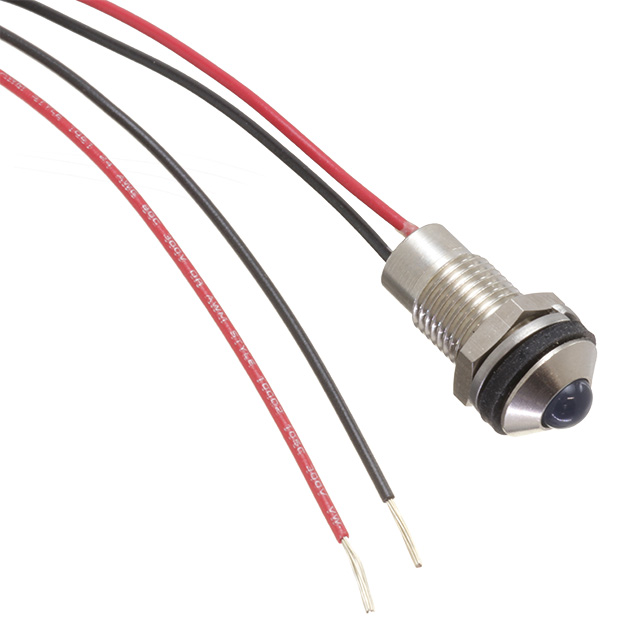

LED Panel Indicator Blue 20° 28V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
