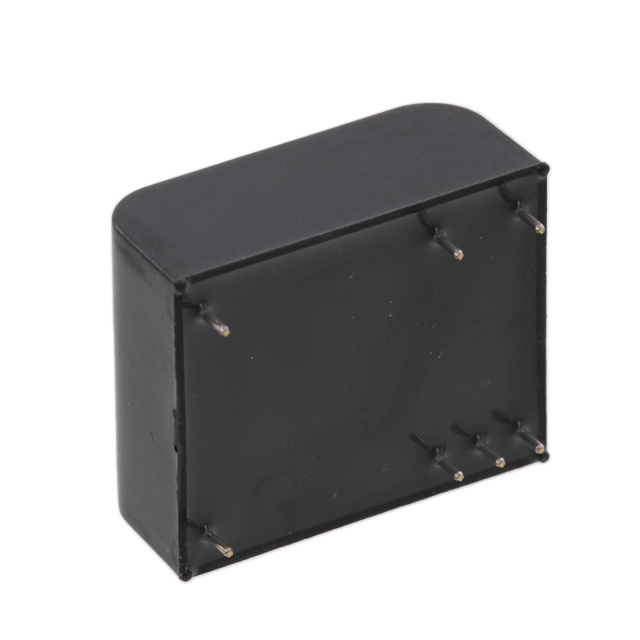

BPSX 2-08-50
ActiveCita Technologies, LLC.
AC/DC CONVERTER 8V 5V 3.3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPSX 2-08-50 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 70 % |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 3.3 W |
| Size / Dimension [x] | 1.35 " |
| Size / Dimension [x] | 34.2 mm |
| Size / Dimension [y] | 28.4 mm |
| Size / Dimension [y] | 1.12 in |
| Size / Dimension [z] | 14.8 mm |
| Size / Dimension [z] | 0.58 " |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output 1 | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.71 | |
| 5 | $ 10.56 | |||
| 20 | $ 10.40 | |||
| 40 | $ 9.49 | |||
| 100 | $ 9.18 | |||
| 260 | $ 8.87 | |||
| 500 | $ 8.57 | |||
Description
General part information
BPSX 2 Series
Enclosed AC DC Converters 2 Output 8V 250mA, 250mA 85 ~ 265 VAC Input
