13050200

Active

Bopla Enclosures

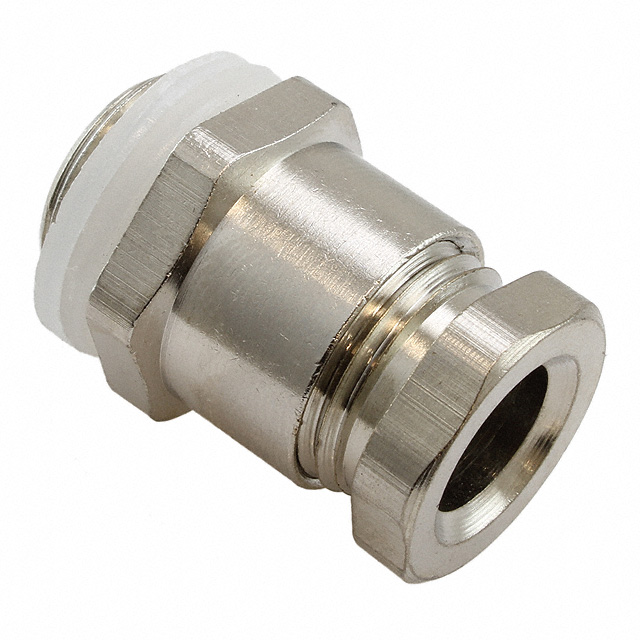

CABLE GLAND 6-8MM PG9 BRASS

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 6-8MM PG9 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	13050200

Color	Silver
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Brass
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Size	PG9
Type	Cable Gland

Part	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Bopla Enclosures 13050700	Cable Gland	IP65 - Dust Tight Water Resistant	100 °C	-20 C	Brass	24 mm	0.945 in	0.709 in	18.01 mm	PG29	Silver
Bopla Enclosures 13050500	Cable Gland	IP65 - Dust Tight Water Resistant	100 °C	-20 C	Brass	14 mm	0.551 "	0.472 in	12 mm	PG16	Silver
Bopla Enclosures 13050300	Cable Gland	IP65 - Dust Tight Water Resistant	100 °C	-20 C	Brass			0.315 in	8 mm	PG11	Silver	0.394 "	10 mm
Bopla Enclosures 13050200	Cable Gland	IP65 - Dust Tight Water Resistant	100 °C	-20 C	Brass			0.236 in	6 mm	PG9	Silver	0.315 in	8 mm
Bopla Enclosures 13050100	Cable Gland	IP65 - Dust Tight Water Resistant	100 °C	-20 C	Brass					PG7	Silver	0.236 in	6 mm	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass PG9 Silver
