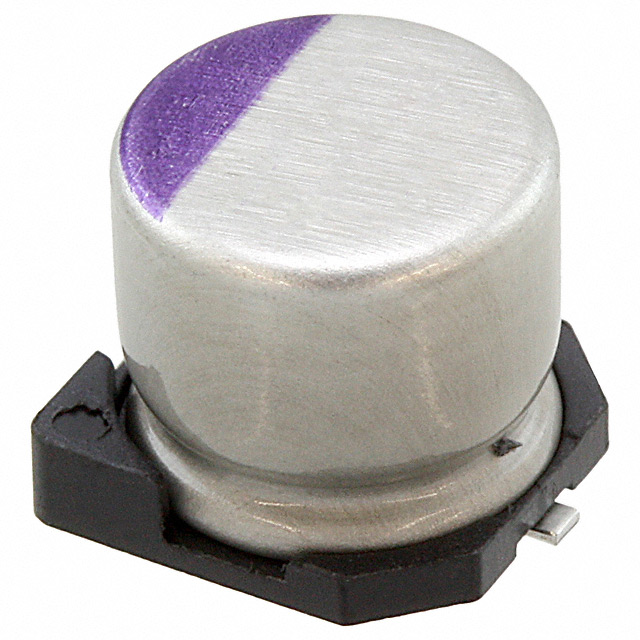

10SVPC120M

Active

Panasonic Industrial Automation Sales

10V 120UF POLYMER ±20% 27MΩ 116MA@120HZ SMD,D6.3XL6MM POLYMER ALUMINUM CAPACITORS ROHS

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

10V 120UF POLYMER ±20% 27MΩ 116MA@120HZ SMD,D6.3XL6MM POLYMER ALUMINUM CAPACITORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	10SVPC120M

Applications	General Purpose
Capacitance	120 µF
ESR (Equivalent Series Resistance)	27 mOhms
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.32 A
Ripple Current @ Low Frequency	116 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Type	Capacitance	ESR (Equivalent Series Resistance)	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Applications	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case
Panasonic Industrial Automation Sales 10SVPC270M	0.315 "	8 mm	Surface Mount	105 ░C	-55 °C	2000 Hrs	161 mA	3.22 A	Polymer	270 µF	22 mOhms	0.327 "	8.3 mm	0.327 in	8.3 mm	General Purpose	10 V	7 mm	0.276 "	20 %	Radial Can - SMD
Panasonic Industrial Automation Sales 10SVPC120MV	0.248 in	6.3 mm	Surface Mount	105 ░C	-55 °C	2000 Hrs	130 mA	2.6 A	Polymer	120 µF	22 mOhms	0.26 in	6.6 mm	0.26 in	6.6 mm	General Purpose	10 V	6 mm	0.236 in	20 %	Radial Can - SMD
Panasonic Industrial Automation Sales 10SVPC68MV	0.197 "	5 mm	Surface Mount	105 ░C	-55 °C	2000 Hrs	127 mA	2.54 A	Polymer	68 µF	23 mOhm	0.209 in	5.3 mm	0.209 in	5.3 mm	General Purpose	10 V	6 mm	0.236 in	20 %	Radial Can - SMD
Panasonic Industrial Automation Sales 10SVPC120M	0.248 in	6.3 mm	Surface Mount	105 ░C	-55 °C	2000 Hrs	116 mA	2.32 A	Polymer	120 µF	27 mOhms	0.26 in	6.6 mm	0.26 in	6.6 mm	General Purpose	10 V	6 mm	0.236 in	20 %	Radial Can - SMD
Panasonic Industrial Automation Sales 10SVPC330M	0.315 "	8 mm	Surface Mount	105 ░C	-55 °C	2000 Hrs	173 mA	3.46 A	Polymer	330 µF	19 mOhm	0.327 "	8.3 mm	0.327 in	8.3 mm	General Purpose	10 V	7 mm	0.276 "	20 %	Radial Can - SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10V 120UF POLYMER ±20% 27MΩ 116MA@120HZ SMD,D6.3XL6MM POLYMER ALUMINUM CAPACITORS ROHS
