DCW12C-05

Active

MEAN WELL USA Inc.

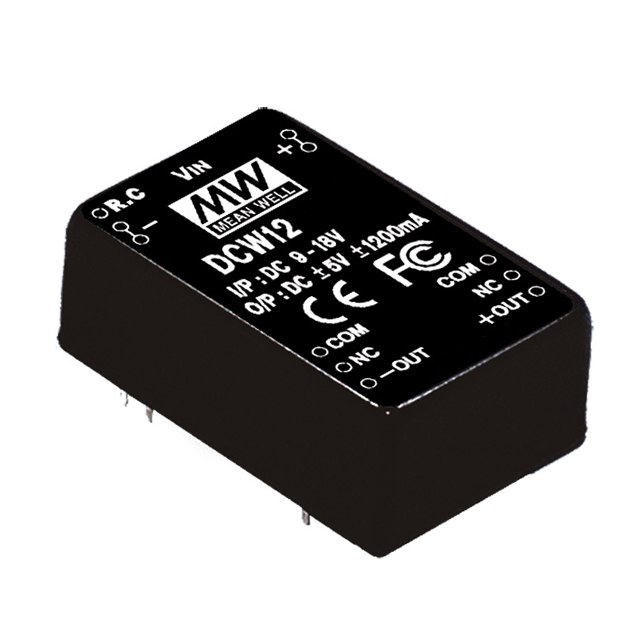

DC DC CONVERTER +/-5V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCW12C-05

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-5V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCW12C-05

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1.2 A
Current - Output (Max) [Max]	1.2 A
Efficiency	81 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	1.25 "
Size / Dimension [x]	31.8 mm
Size / Dimension [y]	20.3 mm
Size / Dimension [y]	0.8 in
Size / Dimension [z]	0.48 in
Size / Dimension [z]	12.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

DCW12 Series

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Efficiency	Voltage - Output 2	Voltage - Output 1	Power (Watts)	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. DCW12B-15	1.5 kV	36 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	84 %	-15 V	15 V	12 W	2	400 mA	400 mA	ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	18 V
MEAN WELL USA Inc. DCW12C-05	1.5 kV	72 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	81 %	-5 V	5 V	12 W	2			ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	36 V	1.2 A	1.2 A
MEAN WELL USA Inc. DCW12C-15	1.5 kV	72 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	83 %	-15 V	15 V	12 W	2	400 mA	400 mA	ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	36 V
MEAN WELL USA Inc. DCW12A-15	1.5 kV	18 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	83 %	-15 V	15 V	12 W	2	400 mA	400 mA	ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	9 V
MEAN WELL USA Inc. DCW12A-12	1.5 kV	18 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	84 %	-12 V	12 V	12 W	2		500 mA	ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	9 V			500 mA
MEAN WELL USA Inc. DCW12C-12	1.5 kV	72 V	Through Hole	9 PC Pad	24-DIP Module	71 °C	-40 °C	OCP Remote On/Off SCP	Isolated Module	84 %	-12 V	12 V	12 W	2		500 mA	ITE (Commercial)	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	36 V			500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 21.34
		5	$ 20.12
		10	$ 19.62

Description

General part information

DCW12 Series

Isolated Module DC DC Converter 2 Output 5V -5V 1.2A, 1.2A 36V - 72V Input
