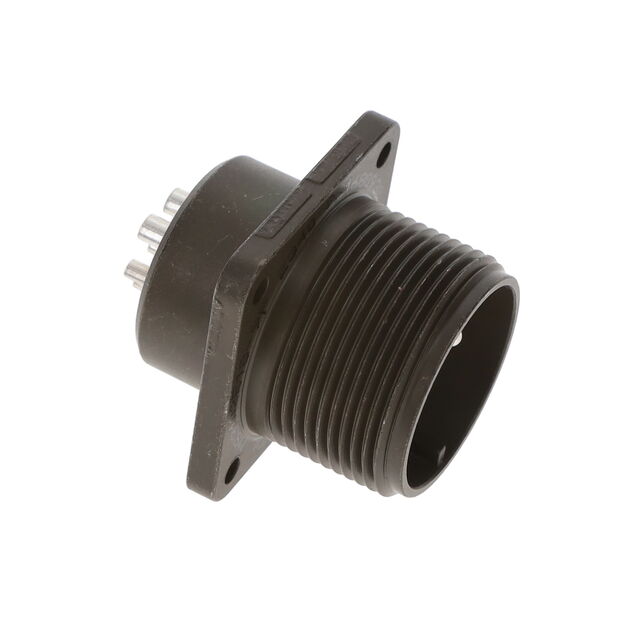

MS3102E18-9P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3102E18-9P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102E18-9P |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 18-9 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.33 | |
| 10 | $ 10.04 | |||
| 25 | $ 9.66 | |||
| 50 | $ 9.27 | |||
| 100 | $ 8.76 | |||
| 250 | $ 7.98 | |||
| 500 | $ 7.47 | |||
| 1000 | $ 6.85 | |||
Description
General part information
MS3102E18 Series
7 Position Circular Connector Receptacle, Male Pins Solder Cup
