ZXT849KTC

Active

Diodes Inc

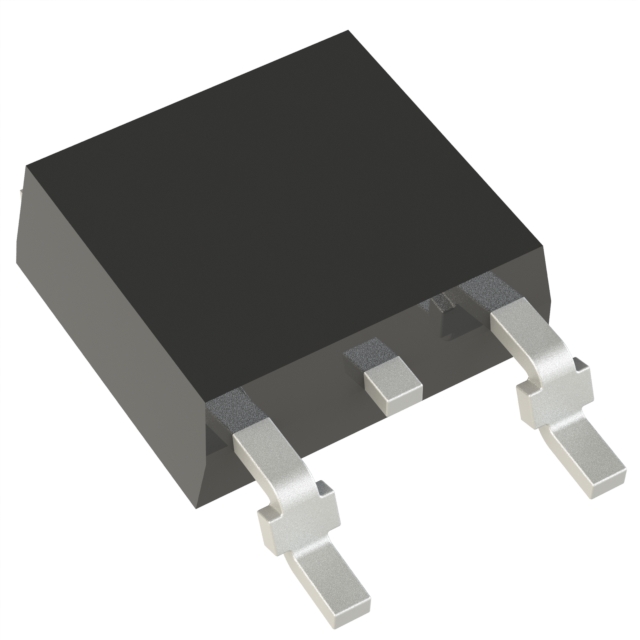

POWER BIPOLAR TRANSISTOR, 7A I(C), 30V V(BR)CEO, 1-ELEMENT, NPN, SILICON, PLASTIC/EPOXY, 2 PIN, DPAK-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

ZXT849KTC

Active

Diodes Inc

POWER BIPOLAR TRANSISTOR, 7A I(C), 30V V(BR)CEO, 1-ELEMENT, NPN, SILICON, PLASTIC/EPOXY, 2 PIN, DPAK-3

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXT849KTC

Current - Collector (Ic) (Max) [Max]	7 A
Current - Collector Cutoff (Max) [Max]	20 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	4.2 W
Supplier Device Package	TO-252-3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	280 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

ZXT849K Series

NPN, 30V, 7A, TO252

Part	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic [Max]	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Power - Max [Max]
Diodes Inc ZXT849KTC	20 nA	7 A	TO-252-3	100 MHz	100	-55 °C	150 °C	DPAK (2 Leads + Tab) SC-63 TO-252-3	280 mV	NPN	30 V	Surface Mount	4.2 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.32
		10	$ 1.08
		100	$ 0.84
		500	$ 0.71
		1000	$ 0.58
	Digi-Reel®	1	$ 1.32
		10	$ 1.08
		100	$ 0.84
		500	$ 0.71
		1000	$ 0.58
	Tape & Reel (TR)	2500	$ 0.54
		5000	$ 0.50
		7500	$ 0.49
Newark	Each (Supplied on Full Reel)	2500	$ 0.62
		5000	$ 0.59
		10000	$ 0.56

Description

General part information

ZXT849K Series

Packaged in the D-Pak outline this high current high performance 30V NPN transistor offers low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions.
