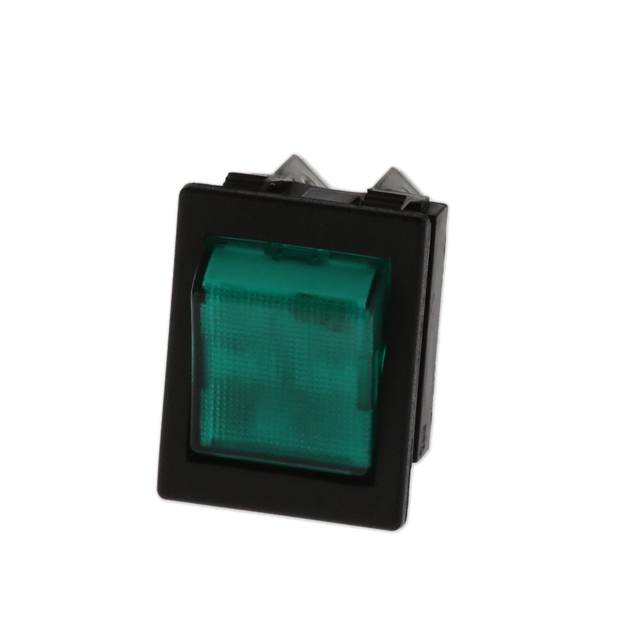

C1353ALNAF

Active

BULGIN LIMITED

SWITCH ROCKER DPST 16A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER DPST 16A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Approval Agency	Switch Function	Actuator Marking	Termination Style	Circuit	Actuator Type	Voltage Rating - AC	Voltage Rating - DC	Illumination Type, Color	Mounting Type	Illumination Voltage (Nominal)
BULGIN LIMITED C1353ALNAE	Red	30 mm	22 mm	16 A	CSA UL	On-Off	O I	Quick Connect - 0.250" (6.3mm)	DPST	Concave (Curved) - Illuminated	250 V
BULGIN LIMITED C1353ALBR2602AW	Red	22.2 mm	30.1 mm	20 A	CSA UL	On-Off	O -	Quick Connect - 0.250" (6.3mm)	DPST-NO	Concave (Curved) - Illuminated	250 V	24 V	Neon Red	Panel Mount Snap-In	125 VAC
BULGIN LIMITED C1353ALNAX
BULGIN LIMITED C1353ALBR2	Red	22.2 mm	30.1 mm	20 A	CSA UL	On-Off	No Marking	Quick Connect - 0.250" (6.3mm)	DPST-NO	Concave (Curved) - Illuminated	250 V	24 V	Neon Red	Panel Mount Snap-In	125 VAC
BULGIN LIMITED C1353ALNAF	Green	30 mm	22 mm	16 A	CSA UL	On-Off	O I	Quick Connect - 0.250" (6.3mm)	DPST	Concave (Curved) - Illuminated	250 V
BULGIN LIMITED C1353ALGNCB
BULGIN LIMITED C1353ALGNE	Green	30 mm	22 mm	16 A	CSA UL	On-Off	O I	Quick Connect - 0.250" (6.3mm)	DPST	Concave (Curved) - Illuminated	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC) 250 V

Technical documentation and resources
