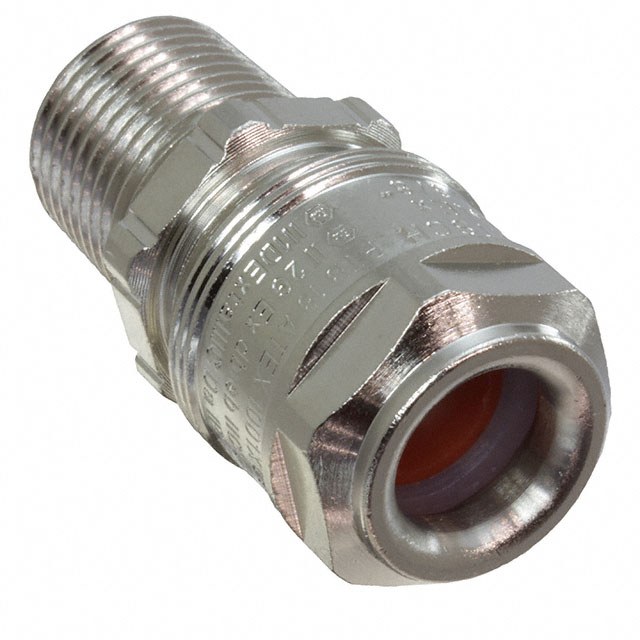

LEX3038MSHTS

Active

Pflitsch

CABLE GLND 7-11MM 3/8" NPT BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLND 7-11MM 3/8" NPT BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	LEX3038MSHTS

Color	Silver
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max]	0.433 in
Outside Cable Diameter (Max) [Max]	11 mm
Outside Cable Diameter (Min)	7 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	3/8" NPT
Type	Cable Gland

Part	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Material	Type	Thread Length	Thread Length
Pflitsch LEX3038MSHTS	7 mm	0.276 in	130 °C	-60 °C	IP66/IP68	Silver	0.433 in	11 mm	3/8" NPT	Brass Nickel Plated	Cable Gland	16 mm	0.63 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 3/8" NPT Silver
