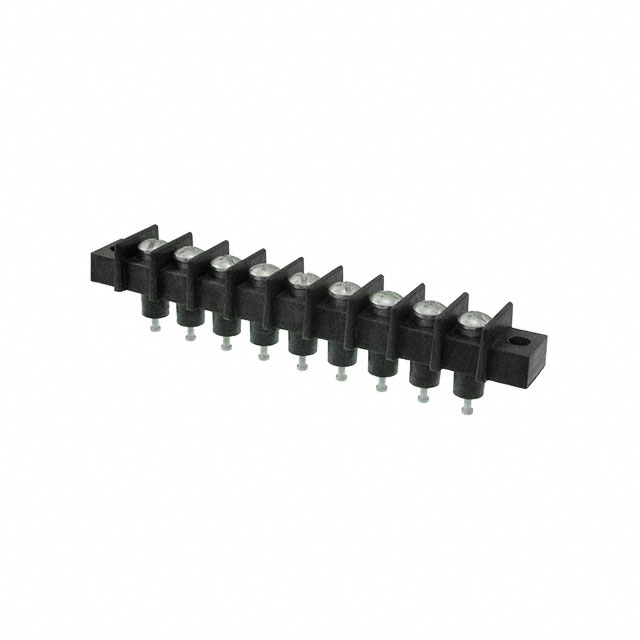

GFTAX-9

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTAX-9

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFTAX-9

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Rows	1
Number of Wire Entries	9
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GFTAX Series

Part	Bottom Termination	Number of Wire Entries	Color	Terminal Block Type	Current Rating (Amps)	Barrier Type	Number of Circuits	Number of Rows	Mounting Type	Terminal Screw Material	Features	Pitch [x]	Pitch [x]	Material Flammability Rating	Top Termination	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Number of Wire Entries [custom]
Curtis Industries GFTAX-2	Solder Turret Insulated	2	Black	Barrier Block	20 A	2 Wall (Dual)	2	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C
Curtis Industries GFTAX-22	Solder Turret Insulated		Black	Barrier Block	20 A	2 Wall (Dual)	22	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C	22
Curtis Industries GFTAX-16	Solder Turret Insulated	16	Black	Barrier Block	20 A	2 Wall (Dual)	16	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C
Curtis Industries GFTAX-9	Solder Turret Insulated	9	Black	Barrier Block	20 A	2 Wall (Dual)		1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C
Curtis Industries GFTAX-15	Solder Turret Insulated	15	Black	Barrier Block	20 A	2 Wall (Dual)	15	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C
Curtis Industries GFTAX-6	Solder Turret Insulated	6	Black	Barrier Block	20 A	2 Wall (Dual)	6	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C
Curtis Industries GFTAX-23	Solder Turret Insulated		Black	Barrier Block	20 A	2 Wall (Dual)	23	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C	23
Curtis Industries GFTAX-11	Solder Turret Insulated	11	Black	Barrier Block	20 A	2 Wall (Dual)	11	1	Chassis Panel	Steel	Flange	11.12 mm	0.438 in	UL94 V-0	Screws	Polyphenylene Oxide (PPO)	12 AWG	22 AWG	110 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.50
		10	$ 6.60

Description

General part information

GFTAX Series

9 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources
