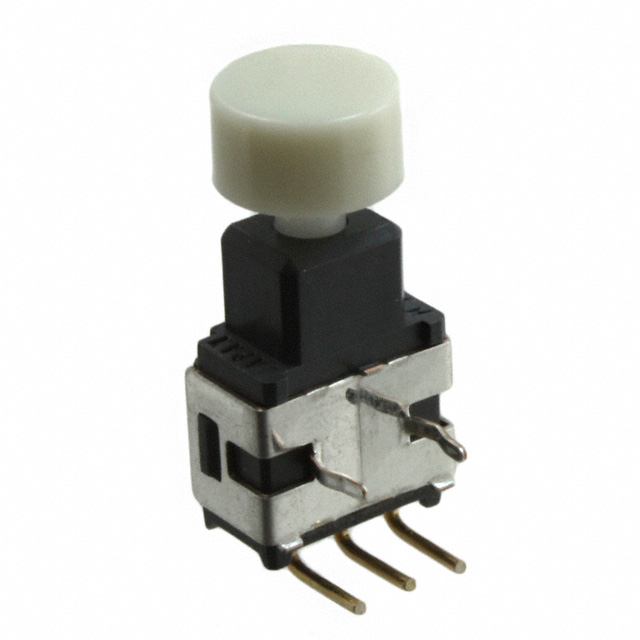

AB15AH-HB

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Type	Electrical Life	Voltage Rating - AC	Termination Style	Switch Function	Circuit
NKK Switches AB15AH-HB	Through Hole Right Angle	White	0.4 VA	No Marking	Standard	Sealed - Fully	-30 ░C	85 °C	28 V	Button Round	50000 Cycles	28 V	PC Pin	On-Mom	SPDT
NKK Switches AB15AH-FC	Through Hole Right Angle	Red	0.4 VA	No Marking	Standard	Sealed - Fully	-30 ░C	85 °C	28 V	Button Round	50000 Cycles	28 V	PC Pin	On-Mom	SPDT
NKK Switches AB15AH-FB	Through Hole Right Angle	White	0.4 VA	No Marking	Standard	Sealed - Fully	-30 ░C	85 °C	28 V	Button Round	50000 Cycles	28 V	PC Pin	On-Mom	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle
