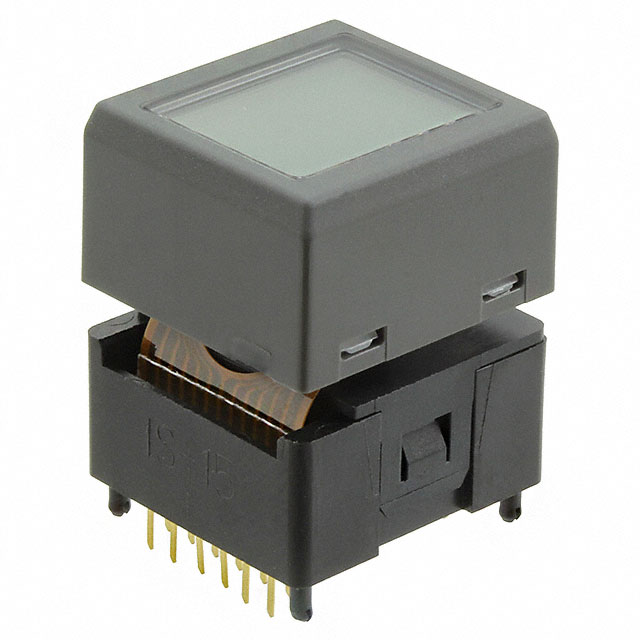

IS15BSBFP4RGB

Active

NKK Switches

SW PROG DISPLAY SPST-NO 0.1A 12V

Search across all available documentation for this part.

Active

NKK Switches

SW PROG DISPLAY SPST-NO 0.1A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	IS15BSBFP4RGB

Circuit	SPST-NO
Contact Rating @ Voltage	0.1 A, 12 VDC
Display Mode	Black and White, FSTN Positive
Face Size [x]	19 mm
Face Size [y]	18 mm
LED Color	Blue, Green, Red
LED Forward Voltage	2.8, 2.8 VDC, 2
Mounting Type	Through Hole
Operating Force	173 gf
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-15 °C
Pixel Format [x]	36
Pixel Format [y]	24
Style	Compact
Supply Voltage [Max]	5.5 V
Supply Voltage [Min]	3 V
Switch Function	Off-Mom
Termination Style	PC Pin
Travel Range	1.8 mm
Type	LCD, Pushbutton
Viewing Area [x]	14.5 mm
Viewing Area [y]	11.8 mm

Part	LED Forward Voltage	Contact Rating @ Voltage	Travel Range	Supply Voltage [Max]	Supply Voltage [Min]	Circuit	Type	Viewing Area [x]	Viewing Area [y]	Style	Display Mode	Face Size [y]	Face Size [x]	Mounting Type	Termination Style	Operating Force	Switch Function	Pixel Format [y]	Pixel Format [x]	LED Color	Operating Temperature [Min]	Operating Temperature [Max]	LED Forward Voltage [Max]	LED Forward Voltage [Min]	LED Forward Current
NKK Switches IS15BSBFP4RGB-BLK	2 2.8 2.8 VDC	0.1 A 12 VDC	1.8 mm	5.5 V	3 V	SPST-NO	LCD Pushbutton	14.5 mm	11.8 mm	Compact	Black and White FSTN Positive	18 mm	19 mm	Through Hole	PC Pin	173 gf	Off-Mom	24	36	Blue Green Red	-15 °C	50 °C
NKK Switches IS15BSBFP4RGB	2 2.8 2.8 VDC	0.1 A 12 VDC	1.8 mm	5.5 V	3 V	SPST-NO	LCD Pushbutton	14.5 mm	11.8 mm	Compact	Black and White FSTN Positive	18 mm	19 mm	Through Hole	PC Pin	173 gf	Off-Mom	24	36	Blue Green Red	-15 °C	50 °C
NKK Switches IS15BSBFP4EF		0.1 A 12 VDC	1.8 mm	5.5 V	3 V	SPST-NO	LCD Pushbutton	14.5 mm	11.8 mm	Compact	Black and White FSTN Positive	18 mm	19 mm	Through Hole	PC Pin	173 gf	Off-Mom	24	36	Yellow - Green	-15 °C	50 °C	3.2 VDC	1.9 VDC	15 15 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable Display Switch Pushbutton, LCD SPST-NO 0.1A @ 12VDC Through Hole
