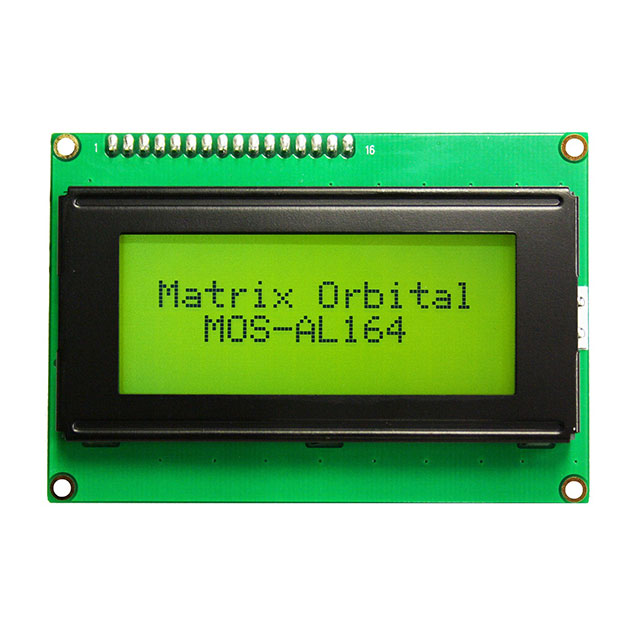

MOP-AL164A-BYFY-25E-3IN
ActiveMatrix Orbital
LCD MOD 64DIG 16X4 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOP-AL164A-BYFY-25E-3IN
ActiveMatrix Orbital
LCD MOD 64DIG 16X4 TRANS YLW/GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOP-AL164A-BYFY-25E-3IN |
|---|---|
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Display Format [x] | 16 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | Alphanumeric |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.55 mm |
| Interface | Parallel, 8-Bit |
| Number of Characters | 64 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 87 mm |
| Outline L x W x H [y] | 40 mm |
| Outline L x W x H [z] | 14 mm |
| Viewing Area [x] | 61.8 mm |
| Viewing Area [y] | 25.2 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.12 | |
| 25 | $ 17.47 | |||
| 50 | $ 16.51 | |||
Description
General part information
MOP-AL164 Series
Character Display Module Transflective 5 x 8 Dots Alphanumeric LED - Yellow/Green Parallel, 8-Bit 87.00mm x 40.00mm x 14.00mm
