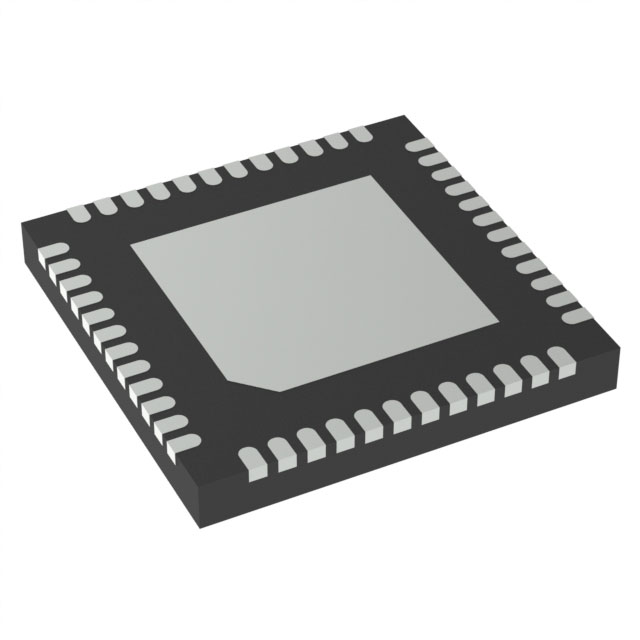

DSPIC33EP64MC504-I/MV
ActiveMicrochip Technology
16-BIT DSC FOR PRECISION MOTOR CONTROL
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33EP64MC504-I/MV
ActiveMicrochip Technology
16-BIT DSC FOR PRECISION MOTOR CONTROL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33EP64MC504-I/MV |
|---|---|
| Connectivity | CANbus, QEI, UART/USART, LINbus, SPI, I2C, IrDA |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters | A/D 9x10b/12b |
| Mounting Type | Surface Mount |
| Number of I/O | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 48-UFQFN Exposed Pad |
| Peripherals | Motor Control PWM, PWM, POR, WDT, Brown-out Detect/Reset, DMA |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 4K x 16 |
| Speed | 70 MIPs |
| Supplier Device Package | 48-UQFN (6x6) |
dsPIC33EP64MC504 Series
16-bit DSC for Precision Motor Control
| Part | Data Converters | Program Memory Size | Core Size | Grade | Connectivity | RAM Size | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Core Processor | Supplier Device Package | Number of I/O | Peripherals | Oscillator Type | Program Memory Type | Package / Case | Speed | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | Automotive | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 125 °C | Surface Mount | dsPIC | 44-QFN (8x8) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 44-VQFN Exposed Pad | 60 MIPs | AEC-Q100 |
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 85 °C | Surface Mount | dsPIC | 44-QFN (8x8) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 44-VQFN Exposed Pad | 70 MIPs | ||
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | Automotive | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 125 °C | Surface Mount | dsPIC | 44-TQFP (10x10) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 44-TQFP | 60 MIPs | AEC-Q100 |
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 85 °C | Surface Mount | dsPIC | 48-UQFN (6x6) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 48-UFQFN Exposed Pad | 70 MIPs | ||
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | Automotive | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 125 °C | Surface Mount | dsPIC | 48-UQFN (6x6) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 48-UFQFN Exposed Pad | 60 MIPs | AEC-Q100 |
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | Automotive | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 125 °C | Surface Mount | dsPIC | 44-VTLA (6x6) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 44-VFTLA Exposed Pad | 60 MIPs | AEC-Q100 |
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 85 °C | Surface Mount | dsPIC | 48-UQFN (6x6) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 48-UFQFN Exposed Pad | 70 MIPs | ||
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 85 °C | Surface Mount | dsPIC | 44-TQFP (10x10) | 35 | Brown-out Detect/Reset DMA Motion Control PWM POR PWM WDT | Internal | FLASH | 44-TQFP | 70 MIPs | ||
Microchip Technology | A/D 9x10b/12b | 64 KB | 16-Bit | CANbus I2C IrDA LINbus QEI SPI UART/USART | 4K x 16 | -40 °C | 85 °C | Surface Mount | dsPIC | 44-TQFP (10x10) | 35 | Brown-out Detect/Reset DMA Motor Control PWM POR PWM WDT | Internal | FLASH | 44-TQFP | 70 MIPs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 244 | $ 3.35 | |
| Microchip Direct | TUBE | 1 | $ 4.05 | |
| 25 | $ 3.72 | |||
| 100 | $ 3.35 | |||
| 1000 | $ 3.08 | |||
| 5000 | $ 2.94 | |||
Description
General part information
dsPIC33EP64MC504 Series
Microchip’s dsPIC33E
family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core
with integrated DSP and enhanced on-chip peripherals. These DSCs enable the
