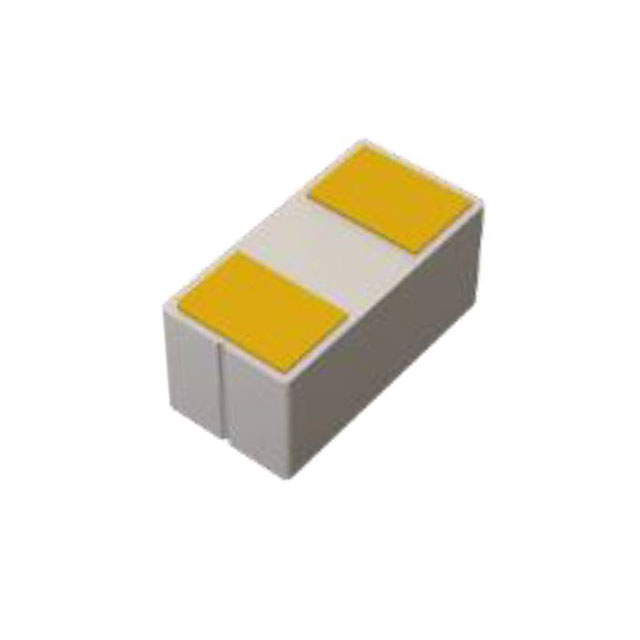

VS3V3BA1EST15R
ActiveRohm Semiconductor
DIODE TVS SINGLE BI-DIR 3.3V 28W 2-PIN CASE 0201(0603METRIC) T/R
Deep-Dive with AI
Search across all available documentation for this part.
VS3V3BA1EST15R
ActiveRohm Semiconductor
DIODE TVS SINGLE BI-DIR 3.3V 28W 2-PIN CASE 0201(0603METRIC) T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VS3V3BA1EST15R |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 3.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power - Peak Pulse | 28 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-962, SMD0603, DSN0603-2 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 4 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 8 V |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
VS3V3BC1HS Series
RASMID™ Series - Transient Voltage Suppressor
| Part | Applications | Package / Case | Mounting Type | Power - Peak Pulse | Type | Capacitance @ Frequency | Supplier Device Package | Voltage - Reverse Standoff (Typ) | Power Line Protection | Bidirectional Channels [custom] | Current - Peak Pulse (10/1000µs) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Breakdown (Min) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rohm Semiconductor | General Purpose | 2-SMD No Lead | Surface Mount | 21 W | Zener | 4.3 pF | SMD0402 | 3.3 V | 1 | 2.8 A | -55 °C | 150 °C | 7.5 V | 4 V | ||
Rohm Semiconductor | General Purpose | 0201 | Surface Mount | 28 W | Zener | DSN0603-2 SMD0603 SOD-962 | 3.3 V | 1 | 3.5 A | -55 °C | 150 °C | 8 V | 4 V | 0603 Metric | ||
Rohm Semiconductor | General Purpose | 2-SMD No Lead | Surface Mount | 38 W | Zener | SMD0402 | 3.3 V | 1 | 5 A | -55 °C | 150 °C | 7.6 V | 4 V | |||
Rohm Semiconductor | General Purpose | 0201 | Surface Mount | 66 W | Zener | DSN0603-2 SMD0603 SOD-962 | 3.3 V | 1 | 3.5 A | -55 °C | 150 °C | 19 V | 6 V | 0603 Metric | ||
Rohm Semiconductor | General Purpose | 0201 | Surface Mount | 66 W | Zener | 0.25 pF | DSN0603-2 SMD0603 SOD-962 | 3.3 V | 1 | 3.5 A | -55 °C | 150 °C | 19 V | 6 V | 0603 Metric | |
Rohm Semiconductor | General Purpose | 2-SMD No Lead | Surface Mount | 26.5 W | Zener | SMD0402 | 3.3 V | 1 | 3.3 A | -55 °C | 150 °C | 8 V | 4 V | |||
Rohm Semiconductor | General Purpose | 0201 | Surface Mount | 70 W | Zener | DSN0603-2 SMD0603 SOD-962 | 3.3 V | 1 | 8.2 A | -55 °C | 150 °C | 8.5 V | 4 V | 0603 Metric |
