603-25-150JA4I

Obsolete

Renesas Electronics Corporation

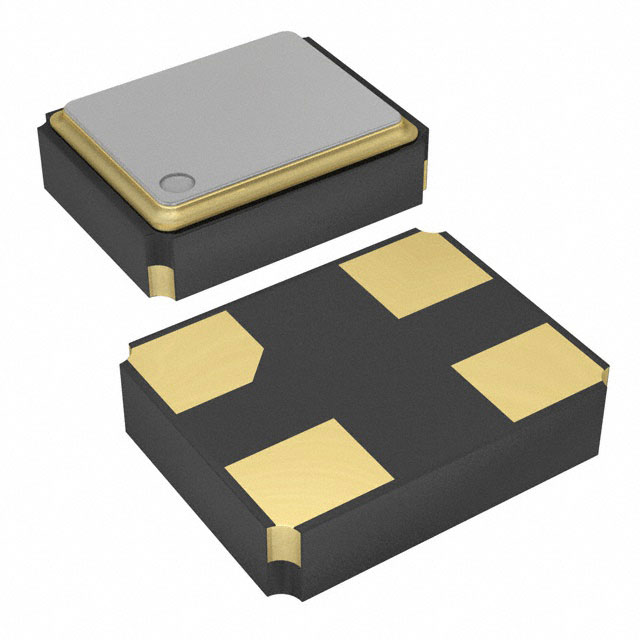

25MHZ 3.2 X 2.5MM REFERENCE CRYSTAL

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

25MHZ 3.2 X 2.5MM REFERENCE CRYSTAL

Technical Specifications

Parameters and characteristics for this part

Specification	603-25-150JA4I

ESR (Equivalent Series Resistance)	50 Ohms
Frequency	25 MHz
Frequency Stability	20 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max] [z]	0.043 in
Height - Seated (Max) [Max] [z]	1.1 mm
Load Capacitance	8 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.13 in
Size / Dimension [x]	3.3 mm
Size / Dimension [y]	2.6 mm
Size / Dimension [y]	0.102 "
Type	MHz Crystal

25MHz 3.2 x 2.5mm Reference Crystal

Part	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	ESR (Equivalent Series Resistance)	Package / Case	Type	Mounting Type	Load Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Frequency Stability	Frequency Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Renesas Electronics Corporation 603-25-150JA4C8	70 °C	0 °C	Fundamental	50 Ohms	4-SMD No Lead	MHz Crystal	Surface Mount	8 pF	2.6 mm	0.13 in	0.102 "	3.3 mm	25 MHz	20 ppm	20 ppm
Renesas Electronics Corporation 603-25-150JA4C	70 °C	0 °C	Fundamental	50 Ohms	4-SMD No Lead	MHz Crystal	Surface Mount	8 pF	2.6 mm	0.13 in	0.102 "	3.3 mm	25 MHz	20 ppm	20 ppm
Renesas Electronics Corporation 603-25-150JA4I	85 °C	-40 °C	Fundamental	50 Ohms	4-SMD No Lead	MHz Crystal	Surface Mount	8 pF	2.6 mm	0.13 in	0.102 "	3.3 mm	25 MHz	20 ppm	20 ppm	0.043 in	1.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The 603-25-150 is a 25MHz 3.2mm x 2.5mm reference crystal that is RoHS compliant and Pb-free.
