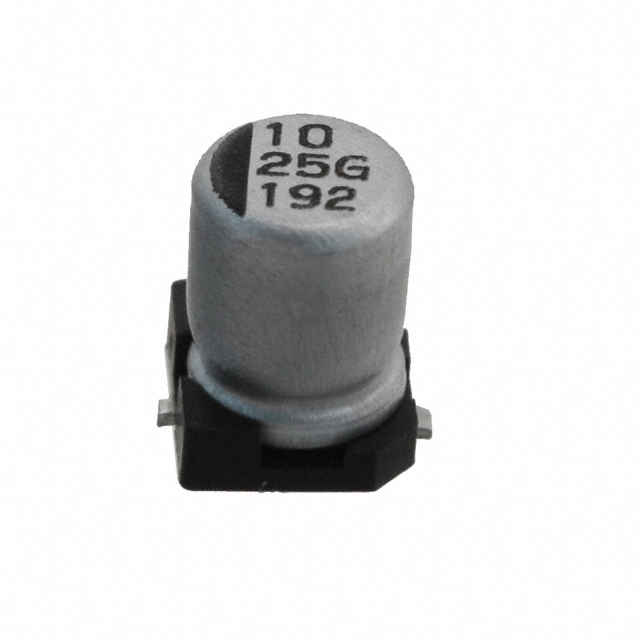

EDK106M025A9BAA
ActiveKEMET
SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 10 ΜF, 25 V, 2000 HOURS @ 85°C, POLAR
Deep-Dive with AI
Search across all available documentation for this part.
EDK106M025A9BAA
ActiveKEMET
SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 10 ΜF, 25 V, 2000 HOURS @ 85°C, POLAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EDK106M025A9BAA |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current @ High Frequency | 30 mA |
| Ripple Current @ Low Frequency | 24 mA |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VDC |
EDK106M Series
| Part | Ripple Current @ Low Frequency | Package / Case | Applications | Lifetime @ Temp. | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Capacitance | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Polarization | Voltage - Rated | Tolerance | Ripple Current @ High Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 27 mA | Radial Can - SMD | General Purpose | 2000 Hrs | 5.3 mm | 0.209 in | 5.3 mm | 0.209 in | 10 µF | Surface Mount | 5 mm | 0.197 " | Polar | 50 VDC | 20 % | 33.75 mA | 5.65 mm | 0.222 " | 85 °C | -40 °C | |||
KEMET | 50 mA | Radial Can - SMD | Automotive | 2000 Hrs | 6.6 mm | 0.26 in | 6.6 mm | 0.26 in | 10 µF | Surface Mount | 6.3 mm | 0.248 in | Polar | 100 V | 20 % | 62.5 mA | 85 °C | -40 °C | 8 mm | 0.315 in | AEC-Q200 | ||
KEMET | 27 mA | Radial Can - SMD | Automotive | 2000 Hrs | 5.3 mm | 0.209 in | 5.3 mm | 0.209 in | 10 µF | Surface Mount | 5 mm | 0.197 " | Polar | 50 VDC | 20 % | 33.75 mA | 5.65 mm | 0.222 " | 85 °C | -40 °C | AEC-Q200 | ||
KEMET | 35 mA | Radial Can - SMD | General Purpose | 2000 Hrs | 7.8 mm | 0.26 in | 6.6 mm | 0.307 in | 10 µF | Surface Mount | 6.3 mm | 0.248 in | Polar | 50 VDC | 20 % | 43.75 mA | 85 °C | -40 °C | 5.64 mm | 0.222 " | |||
KEMET | 30 mA | Radial Can - SMD | Automotive | 2000 Hrs | 5.3 mm | 0.209 in | 5.3 mm | 0.209 in | 10 µF | Surface Mount | 5 mm | 0.197 " | Polar | 35 V | 20 % | 37.5 mA | 5.65 mm | 0.222 " | 85 °C | -40 °C | AEC-Q200 | ||
KEMET | 28 mA | Radial Can - SMD | Automotive | 2000 Hrs | 5.3 mm | 0.209 in | 5.3 mm | 0.209 in | 10 µF | Surface Mount | 5 mm | 0.197 " | Polar | 25 VDC | 20 % | 35 mA | 5.65 mm | 0.222 " | 85 °C | -40 °C | AEC-Q200 | ||
KEMET | 24 mA | Radial Can - SMD | General Purpose | 2000 Hrs | 10 µF | Surface Mount | 4 mm | 0.157 in | Polar | 25 VDC | 20 % | 30 mA | 5.5 mm | 0.217 in | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.22 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.22 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 2000 | $ 0.08 | ||
| 4000 | $ 0.07 | |||
| 10000 | $ 0.07 | |||
| 14000 | $ 0.06 | |||
| 50000 | $ 0.06 | |||
| 100000 | $ 0.05 | |||
| Newark | Each (Supplied on Full Reel) | 30000 | $ 0.06 | |
| 50000 | $ 0.05 | |||
Description
General part information
EDK106M Series
10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Documents
Technical documentation and resources
