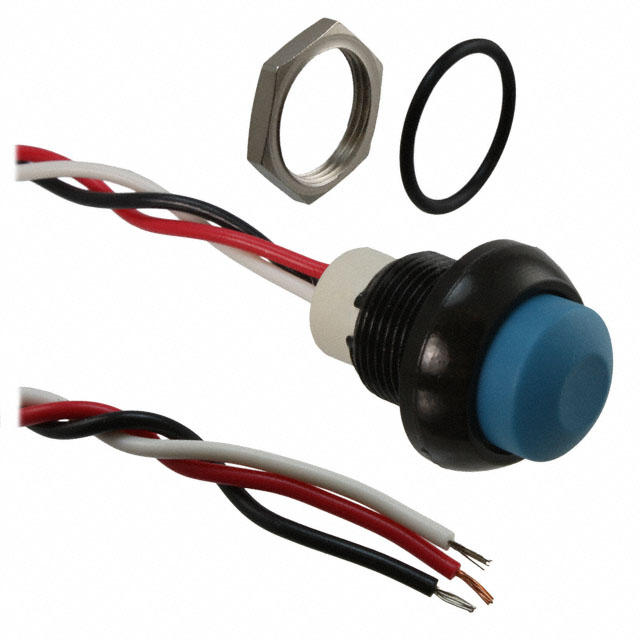

IHSH36F1
ActiveAPEM
SWITCH PUSH HALL EFFECT 50MA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IHSH36F1
ActiveAPEM
SWITCH PUSH HALL EFFECT 50MA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IHSH36F1 |
|---|---|
| Actuator Color | Blue |
| Actuator Type | Round Button |
| Body Color | Black |
| Circuit | Single |
| Current - Output (Max) [Max] | 50 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Force | 612 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Supply Current | Varies by Supply Voltage |
| Supply Voltage [Max] | 24 VDC |
| Supply Voltage [Min] | 3.5 VDC |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Travel Range | 1.7 mm |
| Voltage - Output (Max) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 62.28 | |
Description
General part information
IHSH36 Series
Pushbutton Hall Effect Switch 50mA 28 V
