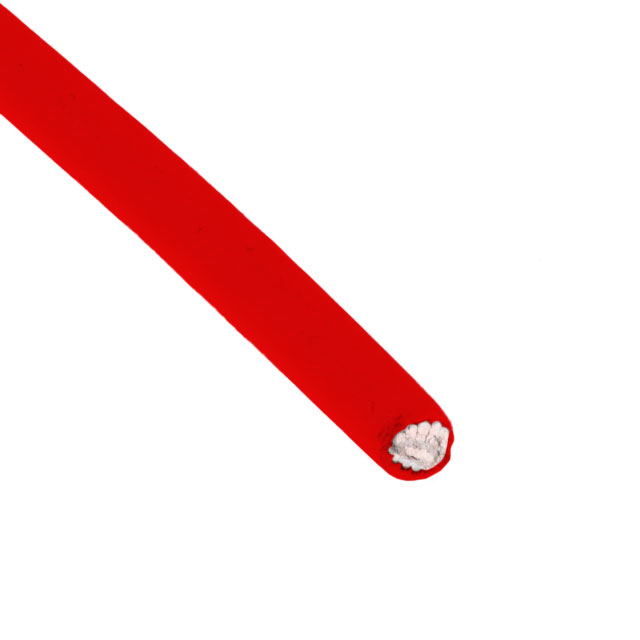

2618 RD001

Active

ALPHA WIRE

HOOK-UP STRND 18AWG RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2618 RD001

Active

ALPHA WIRE

HOOK-UP STRND 18AWG RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2618 RD001

Cable Type	Hook-Up
Conductor Material	Nickel Coated, Copper
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	High Temperature, Chemical Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	1.55 mm
Jacket (Insulation) Diameter [diameter]	0.061 in
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)
Jacket (Insulation) Thickness	0.007 in
Jacket (Insulation) Thickness	0.18 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-150 °C
Ratings	UL Style 11905
Voltage	600 V
Wire Gauge	18 AWG

2618 Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Length	Length	Wire Gauge	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 2618 GR001	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up	1000 ft	304.8 m	18 AWG	Green	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)
ALPHA WIRE 2618 YL001	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up	1000 ft	304.8 m	18 AWG	Yellow	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)
ALPHA WIRE 2618 YL005	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up			18 AWG	Yellow	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	30.5 m	100 ft
ALPHA WIRE 2618 OR005	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up			18 AWG	Orange	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	30.5 m	100 ft
ALPHA WIRE 2618 WH005	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up			18 AWG		600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	30.5 m	100 ft
ALPHA WIRE 2618 BL005	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up			18 AWG	Blue	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	30.5 m	100 ft
ALPHA WIRE 2618 RD001	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up	1000 ft	304.8 m	18 AWG	Red	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)
ALPHA WIRE 2618 BK001	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up	1000 ft	304.8 m	18 AWG	Black	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)
ALPHA WIRE 2618 OR001	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up	1000 ft	304.8 m	18 AWG	Orange	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)
ALPHA WIRE 2618 BR005	1.55 mm	0.061 in	Copper Nickel Coated	UL Style 11905	0.007 in	0.18 mm	Hook-Up			18 AWG	Brown	600 V	19	30 AWG	300 °C	-150 °C	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.53
		2000	$ 1.45
		3000	$ 1.43

Description

General part information

2618 Series

18 AWG Hook-Up Wire 19/30 Red 600V 1000.0' (304.8m)
