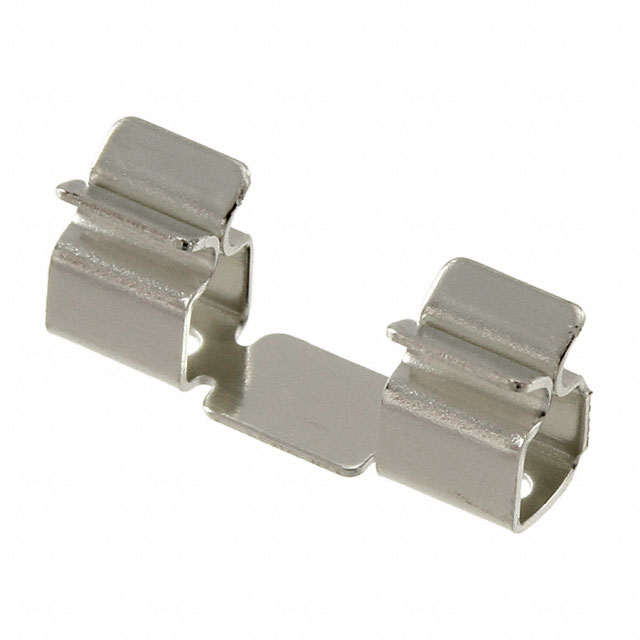

S2711-46R
ActiveHarwin Inc.
RFI SHLD CLIP CU TIN SLD 1900/TR
Deep-Dive with AI
Search across all available documentation for this part.
S2711-46R
ActiveHarwin Inc.
RFI SHLD CLIP CU TIN SLD 1900/TR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S2711-46R |
|---|---|
| Attachment Method | Solder |
| Height [z] | 3.55 mm |
| Height [z] | 0.14 " |
| Length [x] | 0.346 in |
| Length [x] | 8.79 mm |
| Material | Copper Alloy |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Plating | Tin |
| Plating - Thickness [custom] | 118.11 µin |
| Plating - Thickness [custom] | 3 µm |
| Width [y] | 0.09 in |
| Width [y] | 2.28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.23 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| Tape & Reel (TR) | 1900 | $ 0.12 | ||
| 3800 | $ 0.12 | |||
| 5700 | $ 0.11 | |||
| 9500 | $ 0.10 | |||
| 13300 | $ 0.10 | |||
| 47500 | $ 0.10 | |||
| 95000 | $ 0.10 | |||
Description
General part information
S2711 Series
RFI SHLD CLIP CU TIN SLD 1900/TR
