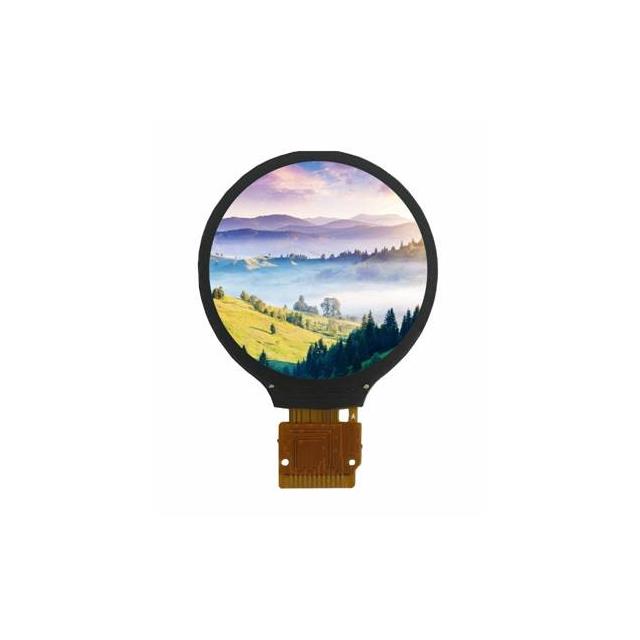

ATM0128B1

Active

AZ Displays

1.28" MCU/SPI 240X240 ROUND 400

Search across all available documentation for this part.

Active

AZ Displays

1.28" MCU/SPI 240X240 ROUND 400

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0128B1

Background Color	Black
Backlight	LED
Controller Type	GC9A01
Diagonal Screen Size	33.02 mm
Diagonal Screen Size	1.3 in
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [x]	0.05 mm
Dot Pitch [y]	0.14 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	240 pixels
Graphics Color	Green, Red, Blue
Interface	SPI
Viewing Area [custom]	34.74 mm
Viewing Area [custom]	34.32 mm

Part	Dot Pixels [y]	Dot Pixels [x]	Backlight	Viewing Area [custom]	Viewing Area [custom]	Background Color	Controller Type	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Interface	Graphics Color	Display Type	Dot Pitch [y]	Dot Pitch [x]
AZ Displays ATM0128B1	240 pixels	240 pixels	LED	34.74 mm	34.32 mm	Black	GC9A01	Transmissive	33.02 mm	1.3 in	SPI	Blue Green Red	TFT - Color IPS (In-Plane Switching)	0.14 mm	0.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 13.07

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) SPI 1.3" (33.02mm) 240 x 240
