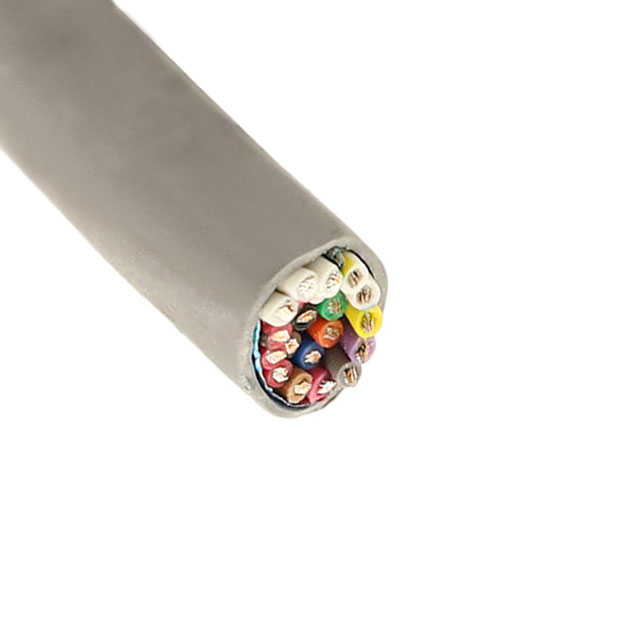

M4702 SL002

Active

ALPHA WIRE

CABLE 20COND 18AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 20COND 18AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4702 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	12.32 mm
Jacket (Insulation) Diameter [diameter]	0.485 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Shield Coverage	Wire Gauge	Cable Type	Ratings	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]	Length	Length
ALPHA WIRE M4702 SL002	Foil	16	30 AWG	300 V	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	-20 C	80 C	Slate	Copper Tinned	100 %	18 AWG	Multi-Conductor	UL Style 2464	Aluminum	12.32 mm	0.485 in	20	Poly-Vinyl Chloride (PVC)	500 '	152.4 m
ALPHA WIRE M4702 SL001	Foil	16	30 AWG	300 V	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	-20 C	80 C	Slate	Copper Tinned	100 %	18 AWG	Multi-Conductor	UL Style 2464	Aluminum	12.32 mm	0.485 in	20	Poly-Vinyl Chloride (PVC)			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.25

General part information

20 Conductor Multi-Conductor Cable Slate 18 AWG Foil 500.0' (152.4m)
