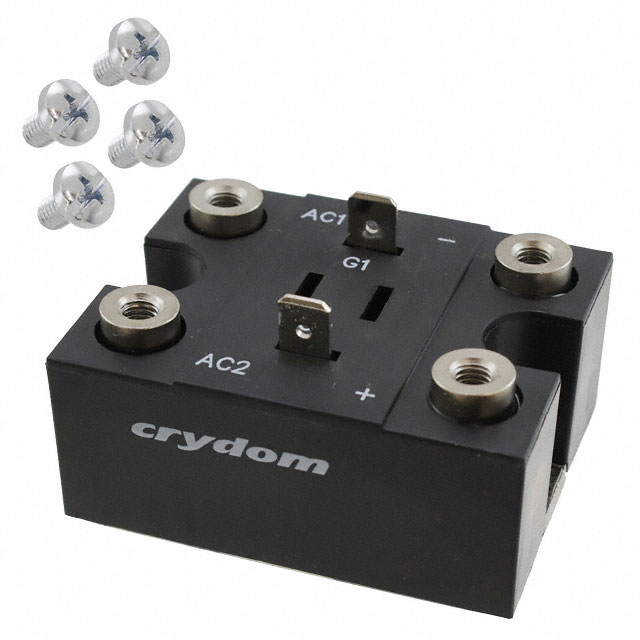

M505015F

Active

Sensata-Crydom

SCR MODULE 1.2KV MODULE

Search across all available documentation for this part.

Active

Sensata-Crydom

SCR MODULE 1.2KV MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	M505015F

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Off State	1.2 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Mounting Type	Structure	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Sensata-Crydom M505015F	600 A	1.2 kV	150 mA	2	2	Chassis Mount	Bridge Single Phase - SCRs/Diodes (Layout 1)	Module	-40 °C	125 ¯C
Sensata-Crydom M505015FV	600 A	1.2 kV	150 mA	2	2	Chassis Mount	Bridge Single Phase - SCRs/Diodes (Layout 1)	Module	-40 °C	125 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 148.81

General part information

SCR Module 1.2 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
