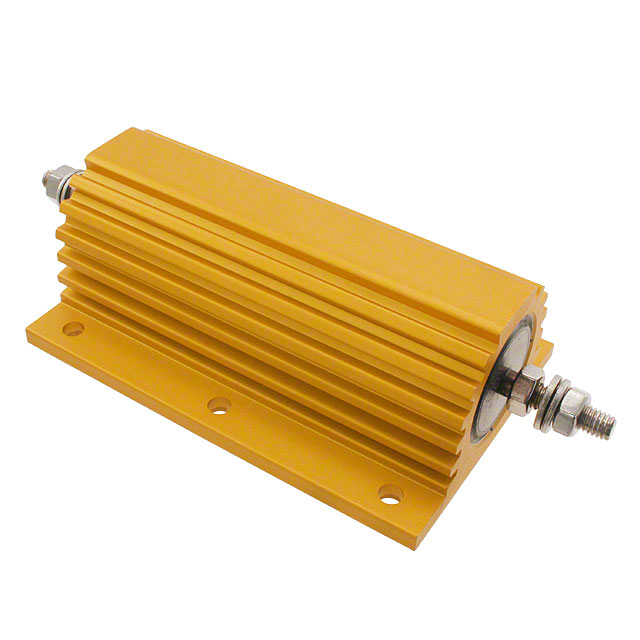

1-1630024-9
ObsoleteTE Connectivity Passive Product
RES CHAS MNT 47 OHM 5% 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1630024-9
ObsoleteTE Connectivity Passive Product
RES CHAS MNT 47 OHM 5% 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1630024-9 |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 42 mm |
| Height - Seated (Max) [Max] | 1.654 in |
| Lead Style | Terminal Screw Type |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 250 W |
| Resistance | 47 Ohms |
| Size / Dimension [x] | 109 mm |
| Size / Dimension [x] | 4.291 in |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.874 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1630024 Series
47 Ohms ±5% 250W Wirewound Chassis Mount Resistor
