CG2164X3-C2
ActiveCEL
IC RF SWITCH DPDT 6GHZ 6TSON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG2164X3-C2
ActiveCEL
IC RF SWITCH DPDT 6GHZ 6TSON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG2164X3-C2 |
|---|---|
| Circuit | DPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 2.4 GHz |
| IIP3 | 55 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 23 dB |

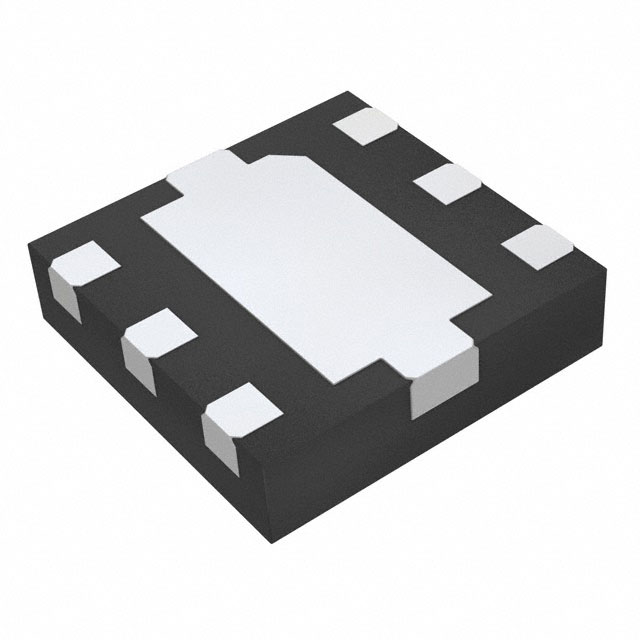

| Package / Case | 6-XFDFN Exposed Pad |
| RF Type | 802.11a/b/g/n/ac |
| Supplier Device Package | 6-TSON |
| Test Frequency | 2.5 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.49 | |||
| 5000 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.49 | |||
| 5000 | $ 0.47 | |||
| Tape & Reel (TR) | 10000 | $ 0.44 | ||
Description
General part information
CG2164 Series
RF Switch IC 802.11a/b/g/n/ac DPDT 6 GHz 50Ohm 6-TSON
Documents
Technical documentation and resources
