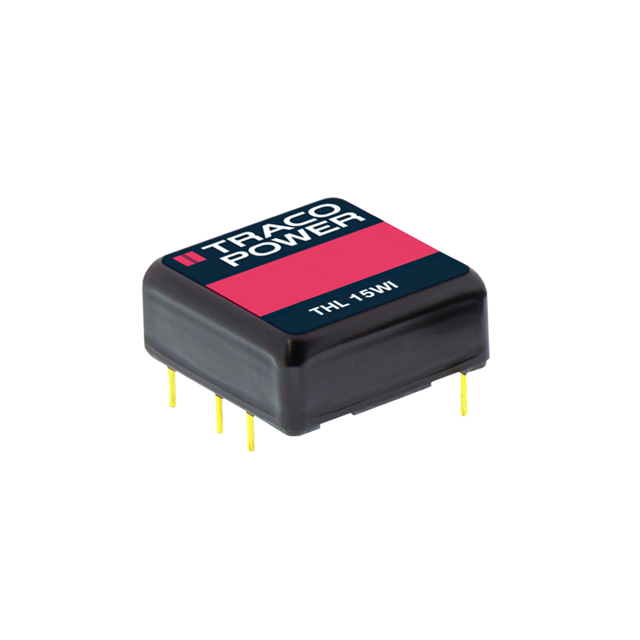

THL 15-4823WI

Active

Traco Power

POWER MODULE/POWER SUPPLY ROHS

Search across all available documentation for this part.

Active

Traco Power

POWER MODULE/POWER SUPPLY ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Max) [Max]	Package / Case	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power THL 15-2412WI	OCP OVP Remote On/Off SCP	-40 °C	70 °C	Isolated Module	36 V	6-DIP Module	CB	9 V	1800 V	1.25 A	12 V	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	ITE (Commercial)	88 %	15 W
Traco Power THL 15-4823WI	OCP OVP Remote On/Off SCP	-40 °C	70 °C	Isolated Module	75 V	6-DIP Module	CB	18 V	1800 V		15 V	Through Hole	2	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	ITE (Commercial)	89 %	15 W	-15 V	500 mA	500 mA
Traco Power THL 15-4810WI	OCP OVP Remote On/Off SCP	-40 °C	70 °C	Isolated Module	75 V	6-DIP Module	CB	18 V	1800 V	3.4 A	3.3 V	Through Hole	1	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	ITE (Commercial)	86 %	11 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 18V - 75V Input
