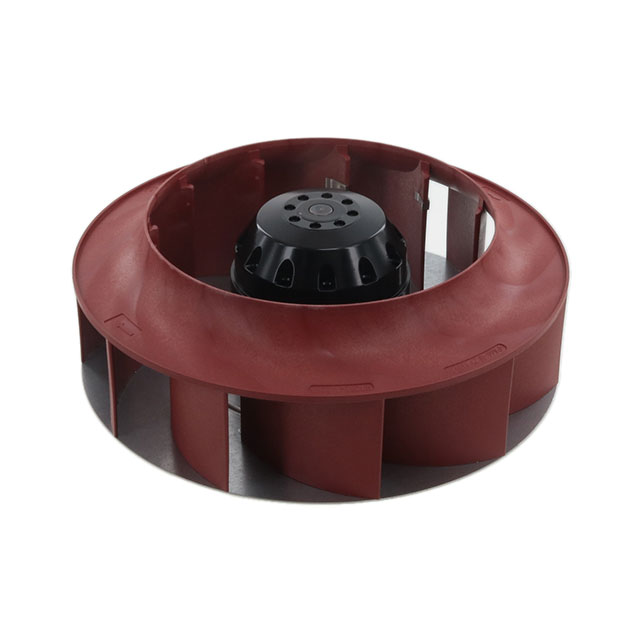

R2D250-AF10-12

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2D250-AF10-12

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	3 Phase, Motorized Impellers
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA66), Nylon 6/6
Operating Temperature	70 °C
Operating Temperature	70 °C
Power (Watts)	160 W
RPM	2600 RPM
Size / Dimension [diameter]	250 mm
Termination	6 Wire Leads with Splice Terminals
Voltage - Rated	400 VAC
Width [y]	99 mm

Part	Size / Dimension [diameter]	Features	Material - Blade	Power (Watts)	Current Rating (Amps)	Bearing Type	Width [y]	Voltage - Rated	Fan Type	RPM	Approval Agency	Ingress Protection	Termination	Operating Temperature	Operating Temperature
ebm-papst Inc. R2D250-AF10-12	250 mm	Thermal Overload Protector (TOP)	Polyamide (PA66) Nylon 6/6	160 W	0.26 A	Ball	99 mm	400 VAC	3 Phase Motorized Impellers	2600 RPM	CE	IP44	6 Wire Leads with Splice Terminals	70 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers, 3 Phase 400VAC Round - 250mm Dia Ball 6 Wire Leads with Splice Terminals
