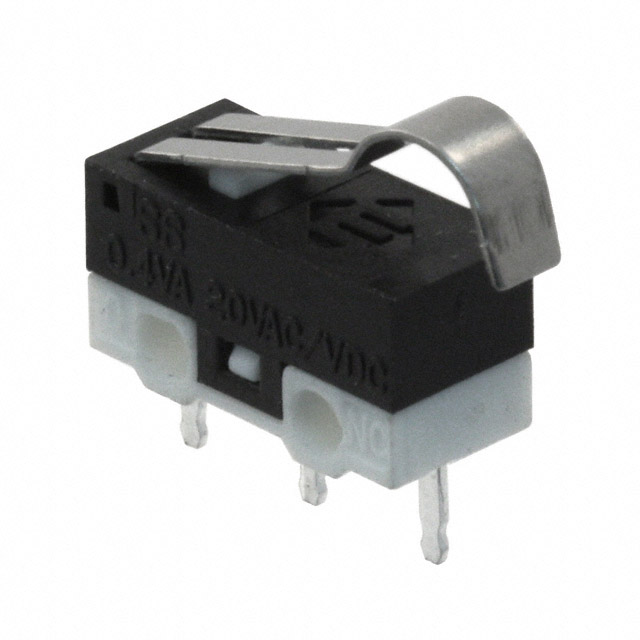

SS075R103F050P1A

Active

E-Switch

SWITCH SNAP ACT SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACT SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Operating Position [x]	Operating Position [x]	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Release Force	Actuator Type	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Mechanical Life	Mounting Type	Current Rating (Amps)	Electrical Life	Operating Force	Operating Position	Operating Position
E-Switch SS075R103F050P1A	On-Mom	9.7 mm	0.38 in	SPDT	-25 °C	75 ░C	0.053 in	1.35 mm	15 gf	Lever Simulated Roller	20 V	20 V	PC Pin	1000000 Cycles	Through Hole	0.4 VA	100000 Cycles	50 gf
E-Switch SS075R101F020V1A	On-On			SPDT	-25 °C	75 ░C	0.063 in	1.6 mm	5 gf	Lever Straight	20 V	20 V	PC Pin	1000000 Cycles	Through Hole Right Angle	0.4 VA	100000 Cycles	20 gf	0.346 in	8.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 0.95

General part information

Switch SPDT Through Hole

Technical documentation and resources

No documents available
