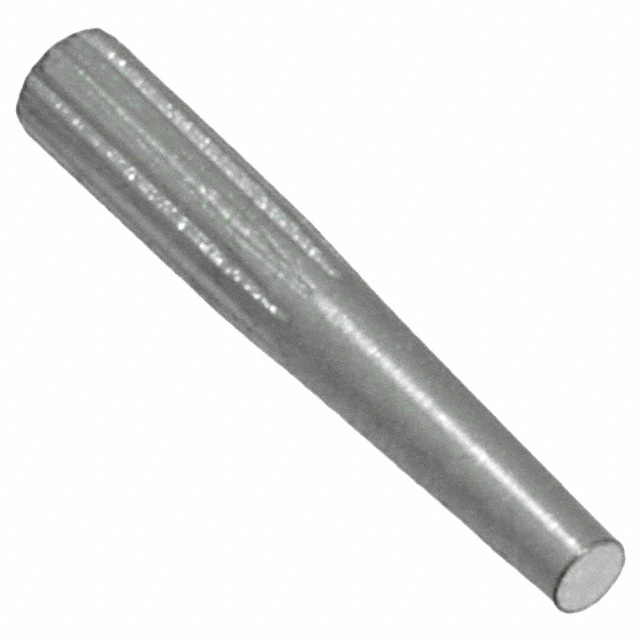

H2088-01
ActiveHarwin Inc.
VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
H2088-01
ActiveHarwin Inc.
VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H2088-01 |
|---|---|
| Board Thickness [Max] | 0.094 ", 2.39 mm |
| Board Thickness [Min] | 1.6 mm, 0.063 " |
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall [x] | 7.14 mm |
| Length - Overall [x] | 0.281 in |
| Mounting Hole Diameter [Max] | 1.04 mm |
| Mounting Hole Diameter [Max] | 0.041 in |
| Mounting Hole Diameter [Min] | 0.039 in |
| Mounting Hole Diameter [Min] | 0.99 mm |
| Mounting Type | Through Hole |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Staking Flare |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
H2088 Series
PC Pin Terminal Connector Through Hole Tin
