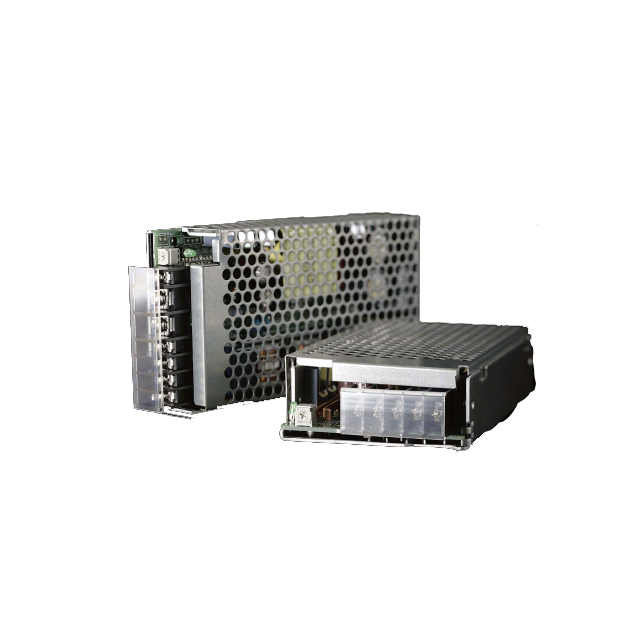

ESS30-36

Active

ETA-USA

AC/DC CONVERTER 36V 29W

Search across all available documentation for this part.

Active

ETA-USA

AC/DC CONVERTER 36V 29W

Technical Specifications

Parameters and characteristics for this part

Specification	ESS30-36

Applications	Industrial, ITE (Commercial)
Approval Agency	CE, cURus, CSA, SEMKO
Efficiency	90.5 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	29 W
Size / Dimension [x]	3.86 in
Size / Dimension [x]	98 mm
Size / Dimension [y]	33 mm
Size / Dimension [y]	1.3 in
Size / Dimension [z]	2.68 "
Size / Dimension [z]	68 mm
Standard Number	60950-1, UL 508
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	110 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

Part	Power (Watts)	Voltage - Isolation	Applications	Approval Agency	Efficiency	Mounting Type	Features	Standard Number	Type	Number of Outputs	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1
ETA-USA ESS30-36	29 W	3000 V	Industrial ITE (Commercial)	CE CSA cURus SEMKO	90.5 %	Chassis Mount	Adjustable Output Remote Sense Universal Input	60950-1 UL 508	Enclosed	1	36 V	85 VAC 110 VDC	264 VAC 370 VDC	-10 °C	71 °C	3.86 in	2.68 "	33 mm	98 mm	1.3 in	68 mm
ETA-USA ESS30-48	31 W	3000 V	Industrial ITE (Commercial)	CE CSA cURus SEMKO	90.5 %	Chassis Mount	Adjustable Output Remote Sense Universal Input	60950-1 UL 508	Enclosed	1	48 V	85 VAC 110 VDC	264 VAC 370 VDC	-10 °C	71 °C	3.86 in	2.68 "	33 mm	98 mm	1.3 in	68 mm	650 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 175.00

General part information

Enclosed AC DC Converters 1 Output 36V 85 ~ 264 VAC, 110 ~ 370 VDC Input
