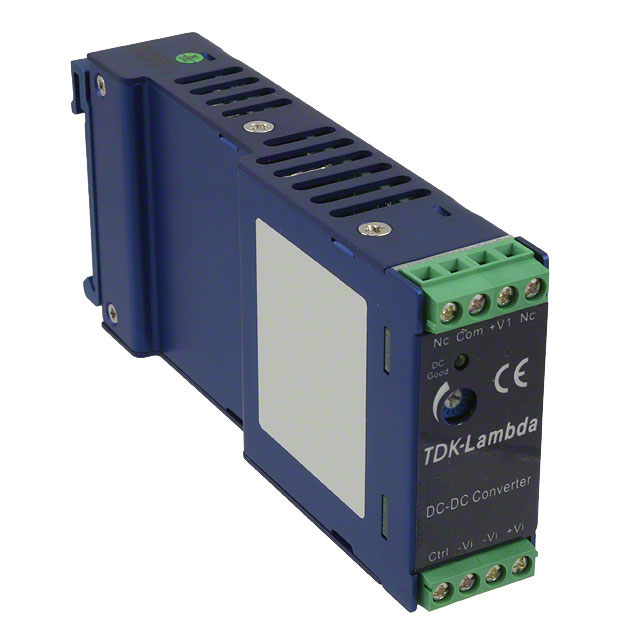

DPX40-24WS15

Active

TDK-LAMBDA

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 1.6KV ISOLATION, ITE, 4:1, 40 W, 1 OUTPUT, 15 V, 2.67 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 1.6KV ISOLATION, ITE, 4:1, 40 W, 1 OUTPUT, 15 V, 2.67 A

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Power (Watts)	Approval Agency	DC Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Efficiency	DC Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Voltage - Output 3	Current - Output (Max)	DC Voltage - Input (Max) [Max] [custom]
TDK-LAMBDA DPX40-48WS15	15 V	40 W	CE	18 V	57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm	2.67 A	DC	85 °C	-40 °C	ITE (Commercial)	1	85 %	75 V
TDK-LAMBDA DPX40-48WD15	15 V	40 W	CE	18 V	57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm		DC	85 °C	-40 °C	ITE (Commercial)	2	85 %	75 V	1.333 A	1.333 A	-15 V
TDK-LAMBDA DPX40-24WS15	15 V	40 W	CE		57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm	2.67 A	DC	85 °C	-40 °C	ITE (Commercial)	1	85 %	36 V
TDK-LAMBDA DPX40-24WD12	12 V	40 W	CE		57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm	1.667 A	DC	85 °C	-40 °C	ITE (Commercial)	2	85 %	36 V			-12 V
TDK-LAMBDA DPX40-48T0512	5 V	40 W	CE	36 V	57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm		DC	85 °C	-40 °C	ITE (Commercial)	3	85 %	75 V			12 V	-12 V
TDK-LAMBDA DPX40-12T0515	5 V	40 W	CE		57.6 mm	0.96 in	4.92 in	2.27 in	24.5 mm	125 mm		DC	85 °C	-40 °C	ITE (Commercial)	3	85 %				15 V	-15 V	6 A 300 mA	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, 1.6KV ISOLATION, ITE, 4:1, 40 W, 1 OUTPUT, 15 V, 2.67 A
