0190010006

Active

Molex

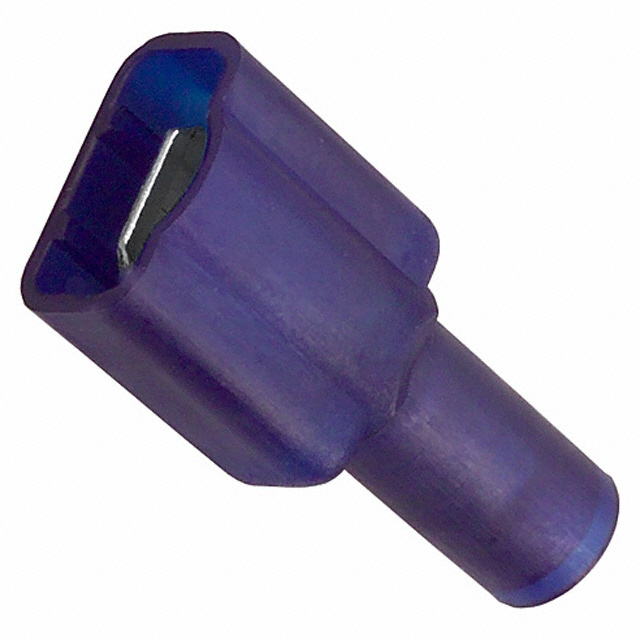

CONN QC TAB 14-16AWG 0.250 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190010006

Active

Molex

CONN QC TAB 14-16AWG 0.250 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190010006

Color	Blue
Contact Finish	Zinc
Contact Material	Brass
Gender	Male
Insulation	Fully Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	0.96 "
Length - Overall [x]	24.38 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

019001 Series

Part	Contact Finish	Terminal Type	Insulation	Color	Gender	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Termination	Length - Overall	Length - Overall	Length - Overall [x]	Length - Overall [x]
Molex 0190010011	Zinc	Standard	Fully Insulated	Yellow	Male	Free Hanging (In-Line)	12 AWG	10 AWG	0.23 in	5.84 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp
Molex 0190010003	Zinc	Standard	Fully Insulated	Red	Male	Free Hanging (In-Line)	22 AWG	17.5 AWG			Brass	4.75 mm	0.187 in	0.02 "	0.51 mm	Crimp	0.9 in	22.86 mm
Molex 0190010007	Zinc	Standard	Fully Insulated	Blue	Male	Free Hanging (In-Line)			0.14 in	3.56 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp			0.96 "	24.38 mm
Molex 0190010059	Zinc	Standard	Fully Insulated	Red	Male	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.14 in	3.56 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp			0.96 "	24.38 mm
Molex 0190010060	Zinc	Standard	Fully Insulated	Blue	Male	Free Hanging (In-Line)			0.14 in	3.56 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp			0.96 "	24.38 mm
Molex 0190010006	Zinc	Standard	Fully Insulated	Blue	Male	Free Hanging (In-Line)			0.14 in	3.56 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp			0.96 "	24.38 mm
Molex 0190010002	Zinc	Standard	Fully Insulated	Red	Male	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.14 in	3.56 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp			0.96 "	24.38 mm
Molex 0190010061	Zinc	Standard	Fully Insulated	Yellow	Male	Free Hanging (In-Line)	12 AWG	10 AWG	0.23 in	5.84 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp
Molex 0190010009	Zinc	Standard	Fully Insulated	Blue	Male	Free Hanging (In-Line)					Brass	4.75 mm	0.187 in	0.02 "	0.51 mm	Crimp	0.9 in	22.86 mm
Molex 0190010010	Zinc	Standard	Fully Insulated	Yellow	Male	Free Hanging (In-Line)	12 AWG	10 AWG	0.23 in	5.84 mm	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.49
		100	$ 0.41
		1000	$ 0.36

Description

General part information

019001 Series

0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
