TS30111-M000QFNR
Semtech Corporation
IC REG BUCK ADJ 700MA 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
TS30111-M000QFNR
Semtech Corporation
IC REG BUCK ADJ 700MA 16QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TS30111-M000QFNR |
|---|---|
| Current - Output | 700 mA |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

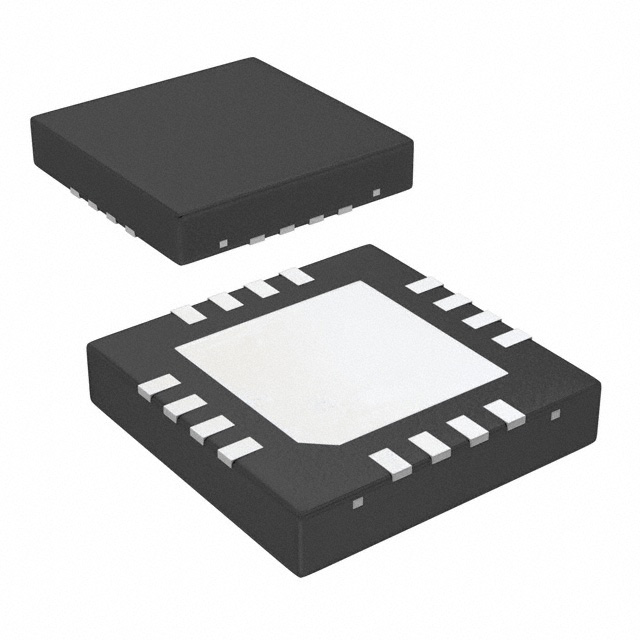

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TS30111 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 700mA 16-VFQFN Exposed Pad
Documents
Technical documentation and resources
No documents available
