3208544

Active

Phoenix Contact

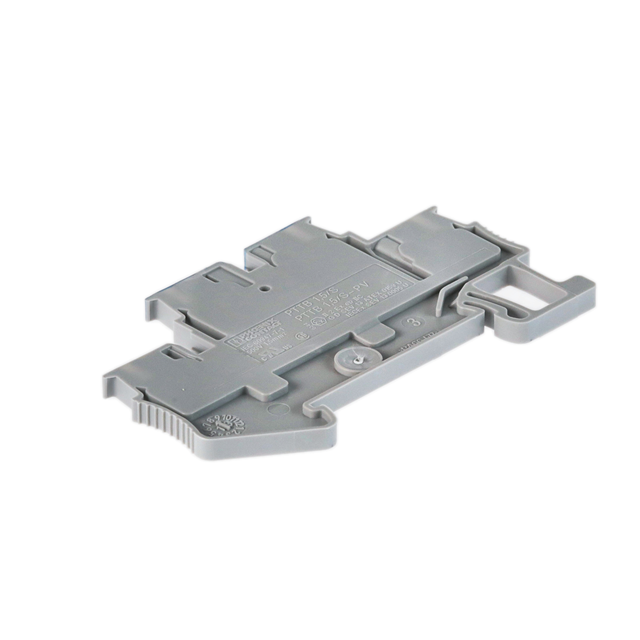

DIN RAIL TERMINAL BLOCKS PTTB 1,5/S-L/N

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS PTTB 1,5/S-L/N

Technical Specifications

Parameters and characteristics for this part

Specification	3208544

Color	Gray
Current - IEC	16 A
Current - UL	5 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	2
Number of Positions	4
Stripping Length	8 mm
Terminal - Width [y]	3.5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

DIN Rail Terminal Blocks PTTB 1,5/S-L/N

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Color	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Voltage - IEC	Stripping Length	Current - IEC	Material - Insulation	Material Flammability Rating	Number of Levels	Type	Terminal - Width [y]	Voltage - UL
Phoenix Contact 3208544	26 AWG	14 AWG	4	Gray	5 A	0.14 mm²	1.5 mm²	Push In Spring	500 V	8 mm	16 A	Nylon Polyamide (PA)	UL94 V-0	2	Feed Through	3.5 mm	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks PTTB 1,5/S-L/N
