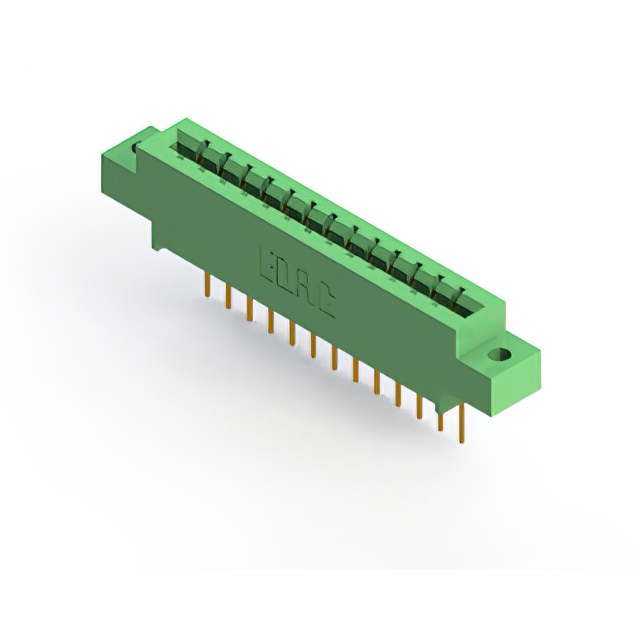

833-013-542-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-013-542-602
ActiveEDAC Inc.
CONN EDGE SGL FMALE 13POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-013-542-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
833-013 Series
...
| Part | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Type | Contact Type | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Mounting Type | Gender | Read Out | Contact Material | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Material - Insulation | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | Side Mount Opening Unthreaded | Solder | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | Solder | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | Side Mount Opening Unthreaded | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Solder | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 13 | 0.156 in | 3.96 mm | Non Specified - Single Edge | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Female | Single | Copper Alloy | 1 | 125 °C | -40 °C | Wire Wrap | Diallyl Phthalate (DAP) | 13 | Green | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
