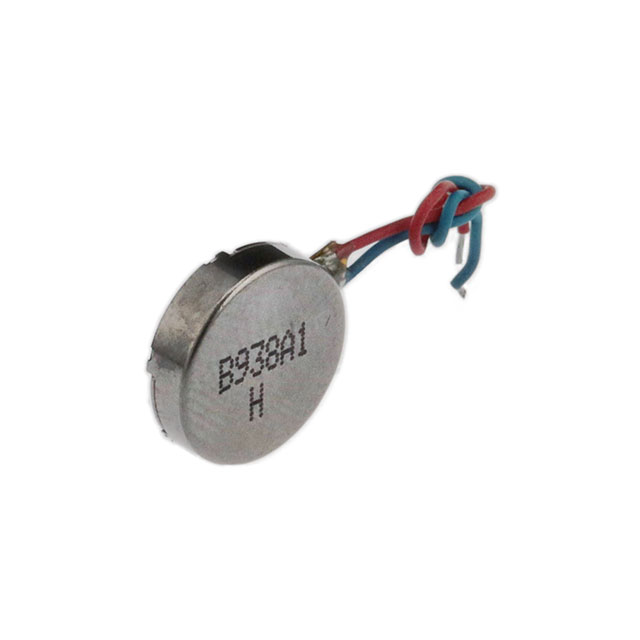

VCDM1027B003L
ActiveVybronics Inc
VIBRATION MTR DUAL MAGNET 1.2G
Deep-Dive with AI
Search across all available documentation for this part.
VCDM1027B003L
ActiveVybronics Inc
VIBRATION MTR DUAL MAGNET 1.2G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCDM1027B003L |
|---|---|
| Function | ERM, Vibration |
| Motor Type | Brushed |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 15000 RPM |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination Style | Wire Leads |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.64 | |
| 5 | $ 3.35 | |||
| 10 | $ 3.23 | |||
| 25 | $ 3.08 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.73 | |||
| 500 | $ 2.63 | |||
| 1000 | $ 2.54 | |||
Description
General part information
CDM1027B Series
Brushed DC Motor Vibration, ERM 15000 RPM 3VDC
