CP33-TO247-28.5-17.5-5.8-0.3
Obsoletet-Global Technology

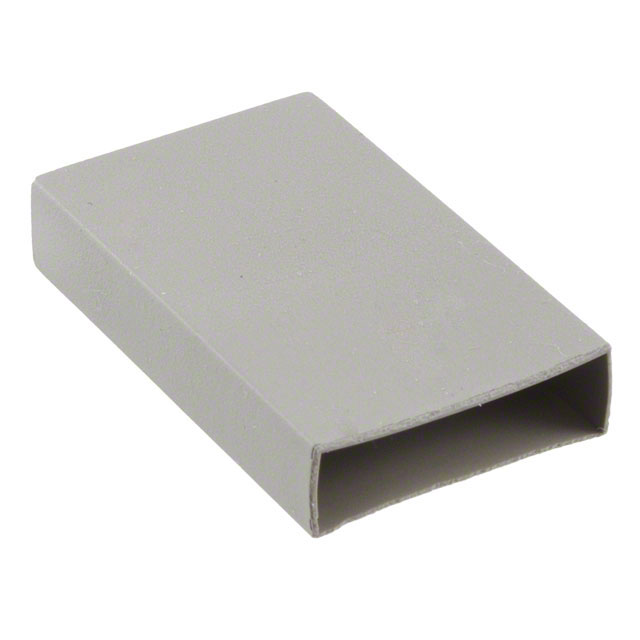

THERM PAD 28.5X17.5X5.8MM GRAY
Deep-Dive with AI
Search across all available documentation for this part.
CP33-TO247-28.5-17.5-5.8-0.3
Obsoletet-Global Technology
THERM PAD 28.5X17.5X5.8MM GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CP33-TO247-28.5-17.5-5.8-0.3 |
|---|---|
| Color | Gray |
| Material | Silicone |
| Outline [x] | 28.5 mm |
| Outline [y] | 17.5 mm |
| Outline [z] | 5.8 mm |
| Shape | Rectangular |
| Shelf Life | 24 Months |
| Thermal Conductivity | 1.9 W/m-K |
| Thickness [custom] | 0.305 mm |
| Thickness [custom] | 0.012 " |
| Type | Interface Cap |
| Usage | TO-247 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CP33-T Series
Thermal Pad Gray 28.50mm x 17.50mm x 5.80mm Rectangular
Documents
Technical documentation and resources
