19620031121

Active

HARTING Technology Group

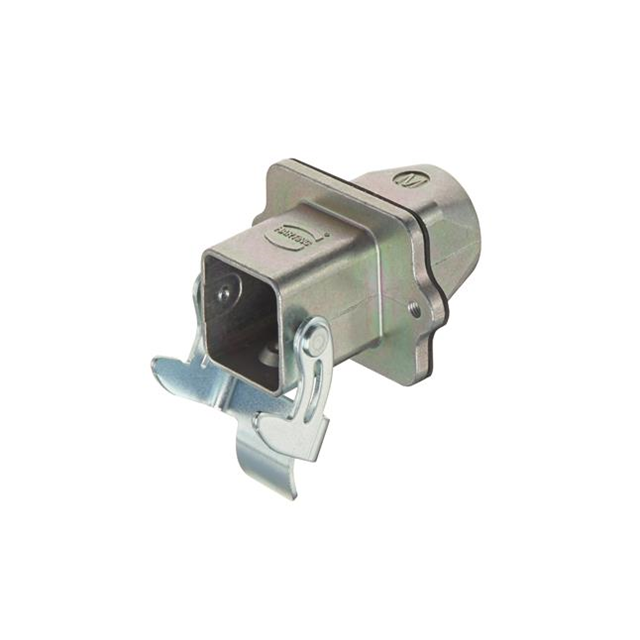

3A EMC BULKHEAD PANEL FEED THROUGH HOUSING, M20 (WITH M4 MOUNTING HOLES)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19620031121 Datasheet

19620031121

Active

HARTING Technology Group

3A EMC BULKHEAD PANEL FEED THROUGH HOUSING, M20 (WITH M4 MOUNTING HOLES)

Deep-Dive with AI

DocumentsDatasheet 19620031121 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19620031121

Connector Type	Hood/Housing - Panel Mount
Housing Color	Gray
Housing Material	Zinc, Die Cast
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	54 mm
Size / Dimension [x]	2.126 in
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Size / Dimension [z]	57.6 mm
Size / Dimension [z]	2.268 "
Thread Size	M20

19620031 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size	Thread Size	Lock Location	Housing Color	Connector Type	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Style	Size / Dimension [y]	Size / Dimension [z]	Size	Features
HARTING Technology Group 19620031120	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Hood	Gray	Hood/Housing - Panel Mount	Zinc Die Cast	35 mm	57.6 mm	2.268 "	54 mm	2.126 in	1.378 "	IP44
HARTING Technology Group 19620031250	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Base Bottom	Gray	Base - Panel Mount 90°	Zinc Die Cast			1.043 in	40 mm	1.575 in	1.102 in	IP44	Side Entry	28 mm	26.5 mm
HARTING Technology Group 19620031443	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Base Bottom	Gray	Hood	Zinc Die Cast	28 mm	60 mm	2.362 "	27 mm	1.063 in	1.102 in	IP44	Top Entry
HARTING Technology Group 19620031121	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Hood	Gray	Hood/Housing - Panel Mount	Zinc Die Cast	35 mm	57.6 mm	2.268 "	54 mm	2.126 in	1.378 "	IP44
HARTING Technology Group 19620031447	125 °C	-40 °C		M25	Locking Clip (1) on Base Bottom		Hood	Zinc Die Cast							IP44	Top Entry			A3
HARTING Technology Group 19620031643	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Base Bottom	Gray	Hood	Zinc Die Cast	28 mm	54.3 mm	2.138 in	27 mm	1.063 in	1.102 in	IP44	Side Entry
HARTING Technology Group 19620031755	125 °C	-40 °C	3 A	M25	Locking Clip (1) on Hood	Gray	Hood/Housing - Coupling	Zinc Die Cast	24.2 mm	57 mm	2.244 "	24.2 mm	0.953 in	0.953 in	IP44					Cable to Cable
HARTING Technology Group 19620031252	125 °C	-40 °C	3 A	M20	Locking Clip (1) on Base Bottom	Gray	Base - Panel Mount 90°	Zinc Die Cast							IP44	Side Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.15
		10	$ 32.75
		25	$ 29.46
		50	$ 27.33
		100	$ 25.47
		250	$ 23.34
Newark	Each	10	$ 30.30
		25	$ 29.08
		50	$ 27.18
		100	$ 26.14
		250	$ 24.76

Description

General part information

19620031 Series

Hood/Housing - Panel Mount Connector M20 3A IP44
