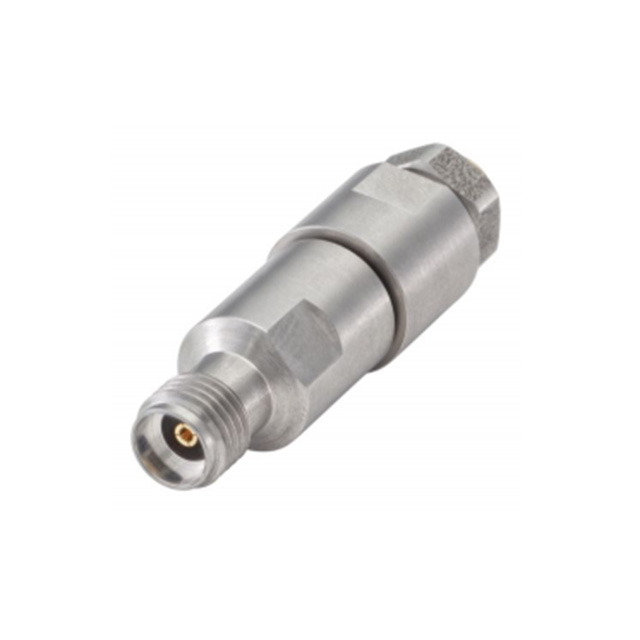

03K121-271S3
ActiveRosenberger
CONN RPC3.50 JACK STR 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03K121-271S3
ActiveRosenberger
CONN RPC3.50 JACK STR 50OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 03K121-271S3 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 3.5 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 10 | $ 174.03 | |
Description
General part information
03K121 Series
3.5mm Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
