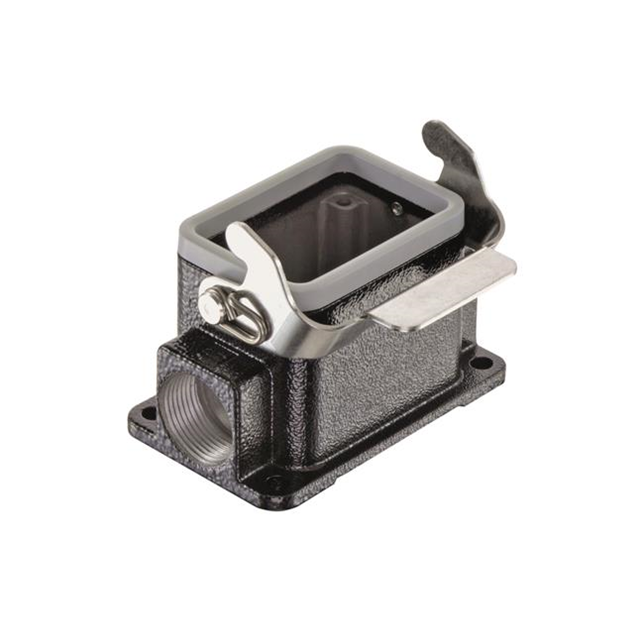

09370061291

Active

HARTING Technology Group

HAN M BASE SURFACE LC 1 LEVER 2 ENTRIES ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M BASE SURFACE LC 1 LEVER 2 ENTRIES ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09370061291

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.228 in
Size / Dimension [x]	82 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.047 "
Size / Dimension [z]	51.5 mm
Size / Dimension [z]	2.028 in
Style	Side Entry
Thread Size	PG16

Part	Features	Lock Location	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Connector Type	Housing Material	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Color	Thread Size	Housing Finish
HARTING Technology Group 09370061291	Feed Through	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Base - Box Mount	Aluminum Die Cast	6B	52 mm	3.228 in	51.5 mm	2.028 in	2.047 "	82 mm	Black	PG16	Powder Coated
HARTING Technology Group 09370061750	Cable to Cable	Locking Clip (1) on Hood Top	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Hood - Coupling	Aluminum Die Cast	6B	43 mm	2.362 in	42.6 mm	1.677 "	1.693 in	60 mm	Black	PG13.5	Powder Coated
HARTING Technology Group 09370061441		Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Top Entry	Hood	Aluminum Die Cast	6B	43 mm	2.362 in	40 mm	1.575 in	1.693 in	60 mm	Black	PG16	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry PG16 6B IP65 - Dust Tight, Water Resistant
