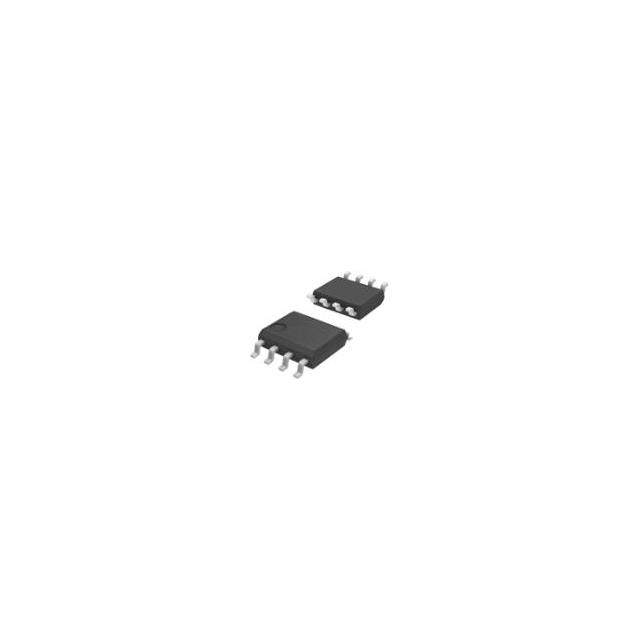

SSC4S790

Active

Sanken Electric USA Inc.

IC GATE DRVR HIGH-SIDE 8SOIC

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IC GATE DRVR HIGH-SIDE 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	SSC4S790

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	300 mA
Current - Peak Output (Source, Sink) [custom]	550 mA
Driven Configuration	High-Side
Gate Type	N-Channel MOSFET
Input Type	Inverting
Logic Voltage - VIL, VIH	2 V, 1.4 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	8-SOIC
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	12 V

Part	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Gate Type	Driven Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Logic Voltage - VIL, VIH	Channel Type	Input Type	Number of Drivers	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Supplier Device Package
Sanken Electric USA Inc. SSC4S790	300 mA	550 mA	N-Channel MOSFET	High-Side	12 V	18 V	85 °C	-40 °C	1.4 V 2 V	Single	Inverting	1	8-SOIC	3.9 mm	0.154 in	Surface Mount	8-SOIC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side Gate Driver IC Inverting 8-SOIC
