7405-2521-002

Active

Radiall USA, Inc.

SSMB F RA NA CR 2/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB F RA NA CR 2/50S

Technical Specifications

Parameters and characteristics for this part

Specification	7405-2521-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Mounting Type	Body Finish	Center Contact Plating	Connector Style	Connector Type	Body Material	Cable Group	Cable Group	Voltage Rating	Frequency - Max [Max]	Contact Termination	Housing Color	Shield Termination	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Ports	Mating Cycles	Center Contact Material
Radiall USA, Inc. 7405-2521-002	Free Hanging (In-Line) Right Angle	Gold	Gold	SSMB	Female Socket Plug	Brass	196	RG-178	250 VDC	12.4 GHz	Crimp	Gold	Crimp	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Snap-On	1	500	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

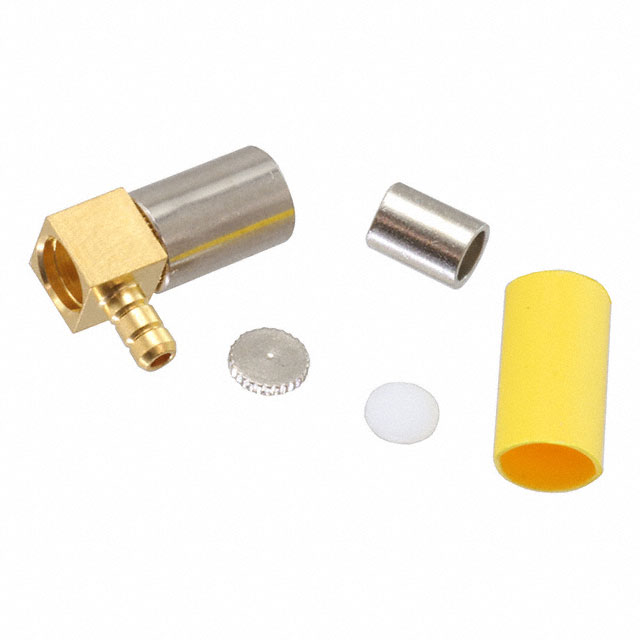

SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
