AB-EZP13G-A3
ActiveAmerican Bright Optoelectronics Corporation

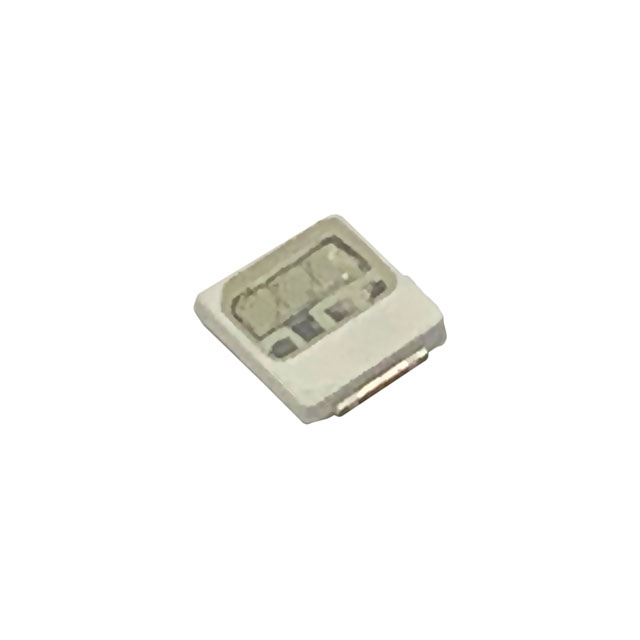

LED AB-EZP GREEN 525NM 3030
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-EZP13G-A3
ActiveAmerican Bright Optoelectronics Corporation
LED AB-EZP GREEN 525NM 3030
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-EZP13G-A3 |
|---|---|
| Color | Green |
| Height - Seated (Max) [Max] [z] | 0.52 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Luminous Flux @ Current/Temperature | 71 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 3030 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 12 V |
| Wavelength | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.01 | |
| 10 | $ 1.44 | |||
| Digi-Reel® | 1 | $ 2.18 | ||
| 10 | $ 1.41 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.82 | |||
| Tape & Reel (TR) | 10000 | $ 0.65 | ||
| 14000 | $ 0.64 | |||
Description
General part information
AB-EZP13 Series
LED Lighting Color AB-EZP Green 525nm (520nm ~ 530nm) 1212 (3030 Metric)
